- Specification
- Datasheet download

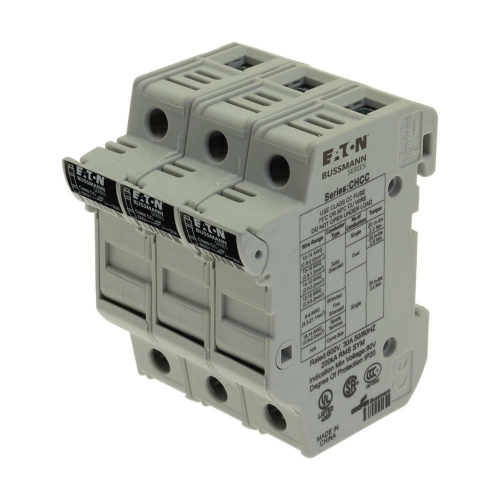

| Product Name | CHCC fuse holder |
| Catolog Number | CHCC3DU |
| Recommended Fuse | FKTK-R, LP-CC and FNQ-R Class CC fuse |
| Fuse Size | 10 X 38 mm |
| Rated Amperage | 30A |
| Rated Voltage | 600VDC |
| Datasheet | |
| Product Height | 69mm |
| Product Length | 74mm |
| Product Width | 83mm |
| Product Weight | 0.11kg |
| Pack Quantity | 4pcs |
| Voltage Type | DC |
| Mounting Style | DIN |
| Numbers of Pole | 3 Poles |
| 3D Model; CAD | STP |
| Compliacne | Rohs |
