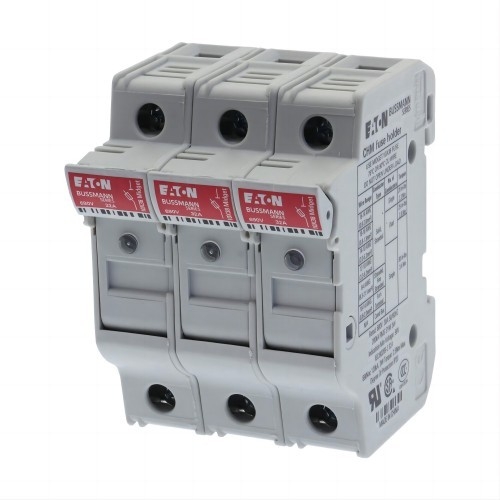

BUSSMANN SERIES SUPPLEMENTAL FUSE BLOCKS, HOLDERS, AND CLIPS:CHM3DIU
SPECIFICATIONS
| GENERAL SPECIFICATIONS | |
| PRODUCT NAME | Eaton Bussmann series high speed cylindrical fuse |
| CATALOG NUMBER | CHM3DIU |
| UPC | 51712362788 |
| EAN | 51712362788 |
| AMPERAGE RATING | 30A (UL), 32A (IEC) |
| VOLTAGE RATING | 600 V (UL), 690 V (IEC) |
| Fuse Size | 0.394" Dia x 1.496" L (10mm x 38mm) |
| PRODUCT WEIGHT | 172g |
| COMPLIANCES | Contact factory |
| RoHS Compliant | |
| CERTIFICATIONS | Contact Manufacturer |
| INTERRUPT RATING | 50 kAIC |
| CLEARING (I2T) | 40 at 500 V |
| CONNECTION | Ferrule end x ferrule end |
| AMPERAGE RATING | 5 A |
