Bussmann Cooper Xi'An fusegear RSG-1 1000V/100A-P fast acting fuse|ABPower

Bussmann Cooper Xi'An fusegear RSG-1 1000V/100A-P fast acting fuse for semiconductor protection.   All fast acting fuse you can ask ABPower_ A fast acting fuse world.

Fuse manufactrer:

Cooper Xian fusegear

fuse rating:

1000VAC, 100amp

Fuse Type:

Square body fuse, fast acting fuse,

Fuse cross reference:

Bussmann, 170M2681,

 Bussmann, 170M4830.

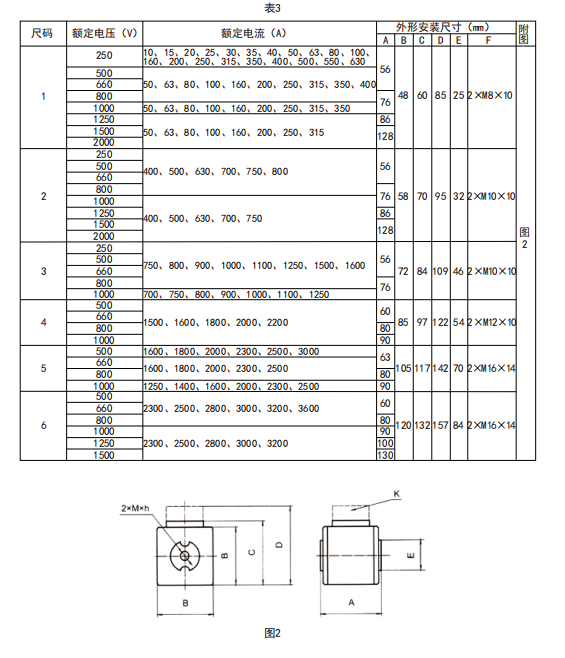

Fuse Chart:

Normal working conditions

1. The upper limit of ambient air temperature shall not exceed +40℃ and the lower limit shall not be less than -5℃.

2. The elevation of the installation site shall not exceed 2000m.

3. It shall be installed in a medium without explosion risk, without gas sufficient to corrode metal and damage insulation and without conductive dust.

4. At the highest temperature +40℃, the humidity does not exceed 50%. At lower temperatures, higher relative humidity is allowed (such as 90% at +20℃).

5. The product can be installed vertically, horizontally or tilting, and there should be no significant vibration and impact in the workplace.

6. When the rated current of the product is greater than 1250A and is used for a long time at more than 70% of the rated current, it must be connected with water-cooled bus or forced air-cooled.
