DFJ-125 Bussmann DFJ Class J Fuse
| Product Name | Eaton Bussmann series DFJ high speed fuse |
| Catolog Number | DFJ-125A |
| Rated Amperage | 125A |
| Rated Voltage | 600VAC,450VDC |
| Datasheet | |
| Product Length | 6 in |
| Product Diameter | 1.73 in |
| Product Weight | 0.76 lb |
| Class | Class J |
| Product Type | High speed fuse |
| Voltage Type | DC/AC |
| Package Type | Standard |
| Breaking Capacity | 200 kAIC at 600 Vac 100 kAIC 450 Vdc |
| Application | Protect power semiconductor devices that utilize diodes, GTOs, SCRs and SSRs |
| Certification | UL Listed CSA Certified |

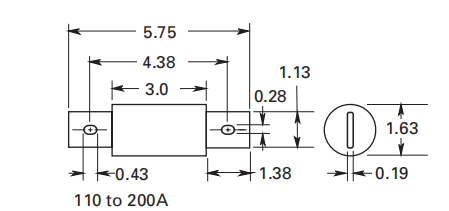

DFJ Fuse Dimensions 110-200A
