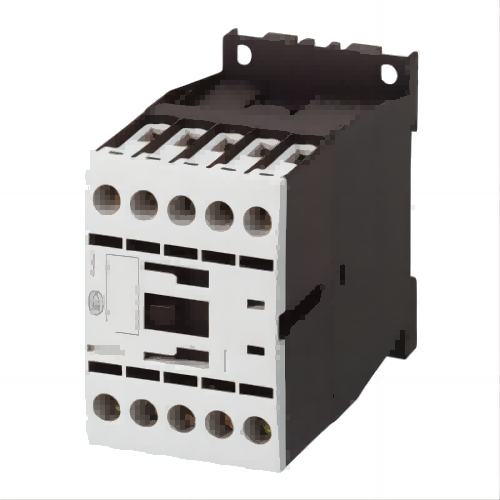

DILM7-10(230V50HZ,240V60HZ
| Datasheet - DILM7-10(230V50HZ,240V60HZ) | |
| Contactor, 3 pole, 380 V 400 V 3 kW, 1 N/O, 230 V 50 Hz, 240 V 60 Hz, AC operation, Screw terminals | |
| Part no. | DILM7-10(230V50HZ,240V60HZ) |
| Product name | Eaton Moeller® series DILM contactor |
| Part no. | DILM7-10(230V50HZ,240V60HZ) |
| EAN | 4015082765507 |
| Product Length/Depth | 75 millimetre |
| Product height | 68 millimetre |
| Product width | 45 millimetre |
| Product weight | 0.24 kilogram |
| Certifications | UL,CE,IEC |
| Product Tradename | DILM |
| Product Type | Contactor |
| Product Sub Type | None |
| Catalog Notes | Contacts according to EN 50012 |
| Application | Contactors for Motors |
| Degree of protection | IP20 |
| Frame size | FS1 |
| Lifespan, mechanical | 10,000,000 Operations (AC operated) |
| Operating frequency | 9000 mechanical Operations/h (AC operated) |
| Overvoltage category | III |
| Pollution degree | 3 |
| Product category | Contactors |
| Protection | Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274) |
| Rated impulse withstand voltage (Uimp) | 8000 V AC |
| Resistance per pole | 2.5 mΩ |
| Suitable for | Also motors with efficiency class IE3 |
| Utilization category | AC-4: Normal AC induction motors: starting, plugging, reversing, inching AC-1: Non-inductive or slightly inductive loads, resistance furnaces AC-3: Normal AC induction motors: starting, switch off during running |
| Voltage type | AC |
