DILM185 | 3 Pole Contactor | Eaton Moeller IEC Contactor
| Product Name | Eaton Moeller series DILM Contactor |
| Catolog Number | DILM185A/22 |
| Other Model | XTCE185 |
| Rated Amperage | 185A |
| Rated Voltage | 380 V 400 V |
| Datasheet | |
| Product Height | 190 mm |
| Product Length | 158 mm |
| Product Width | 140 mm |
| Product Weight | 3.54 kg |
| Applications | Contactors for Motors |
| 3D Model; CAD | step |
| Conections | Screw terminals |
| Certification | EN 60947-4-1 IEC 60947-4-1 UL 508 CSA Std. C22.2 No. 14-05 VDE CE IEC/EN 60947-4-1 CSA Class No.: 3211-04 UL Category Control No.: NLDX UL File No.: E29096 UL CSA IEC/EN 60947 CSA-C22.2 No. 60947-4-1-14 UL 60947-4-1 CSA File No.: 2389068 VDE 0660 |
Eaton Moeller DILM185 Information
| Part Name | Article Number | Rated Current | Max. rating for three phase motors, 50 60 Hz | |||
| UL / CSA Hp | Aux Contacts | |||||
| 230 V | 460V | NO | NC | |||
| DILM185/22(RAC120) | 139536 | 185 | 60 | 125 | 2 | 2 |
| DILM185/22(RAC24) | 139534 | 185 | 60 | 125 | 2 | 2 |
| DILM185/22(RAC240) | 139537 | 185 | 60 | 125 | 2 | 2 |
| DILM185/22(RAC440) | 139538 | 185 | 60 | 125 | 2 | 2 |
| DILM185/22(RAC48) | 139535 | 185 | 60 | 125 | 2 | 2 |
| DILM185/22(RAC500) | 139539 | 185 | 60 | 125 | 2 | 2 |
| DILM185/22(RDC130) | 139542 | 185 | 60 | 125 | 2 | 2 |
| DILM185/22(RDC24) | 139540 | 185 | 60 | 125 | 2 | 2 |
| DILM185/22(RDC240) | 139543 | 185 | 60 | 125 | 2 | 2 |
| DILM185/22(RDC60) | 139541 | 185 | 60 | 125 | 2 | 2 |

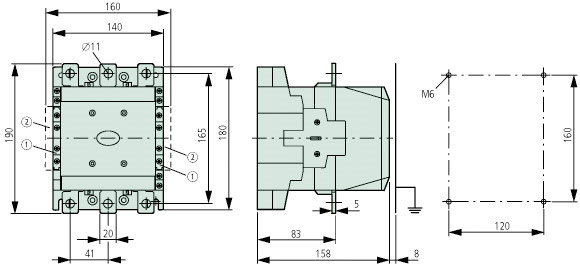

DILM185 Contactor Dimensions
