DILM300 | 3 Pole Contactor | Eaton Moeller IEC Contactor
| Product Name | Eaton Moeller series DILM Contactor |
| Catolog Number | DILM300A/22 |
| Other Model | XTCE300 |
| Rated Amperage | 300A |
| Rated Voltage | 380 V 400 V |
| Datasheet | |
| Product Height | 208 mm |
| Product Length | 189 mm |
| Product Width | 140 mm |
| Product Weight | 7.1 kg |
| Applications | Contactors for Motors |
| 3D Model; CAD | step |
| Conections | Screw terminals |
| Certification | EN 60947-4-1 IEC 60947-4-1 UL 508 CSA Std. C22.2 No. 14-05 VDE CE IEC/EN 60947-4-1 CSA Class No.: 3211-04 UL Category Control No.: NLDX UL File No.: E29096 UL CSA IEC/EN 60947 CSA-C22.2 No. 60947-4-1-14 UL 60947-4-1 CSA File No.: 2389068 VDE 0660 |
DILM300 Information | Eaton Moeller IEC Contactor
| Part Name | Article Number | Rated Current | Max. rating for three phase motors, 50 60 Hz | |||
| UL / CSA Hp | Aux Contacts | |||||
| 230 V | 460V | NO | NC | |||
| DILM300/22（RA110) | 139555 | 300 | 125 | 250 | 2 | 2 |
| DILM300/22（RA250) | 139556 | 300 | 100 | 250 | 2 | 2 |
| DILM300/22（RAC500) | 139557 | 300 | 100 | 250 | 2 | 2 |
| DILM300/22（RDC48) | 139554 | 300 | 100 | 250 | 2 | 2 |

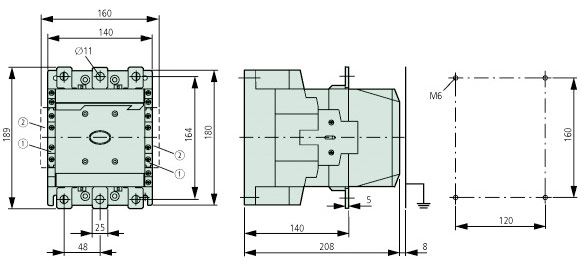

DILM300 Dimension| Eaton Moeller IEC Contactor
