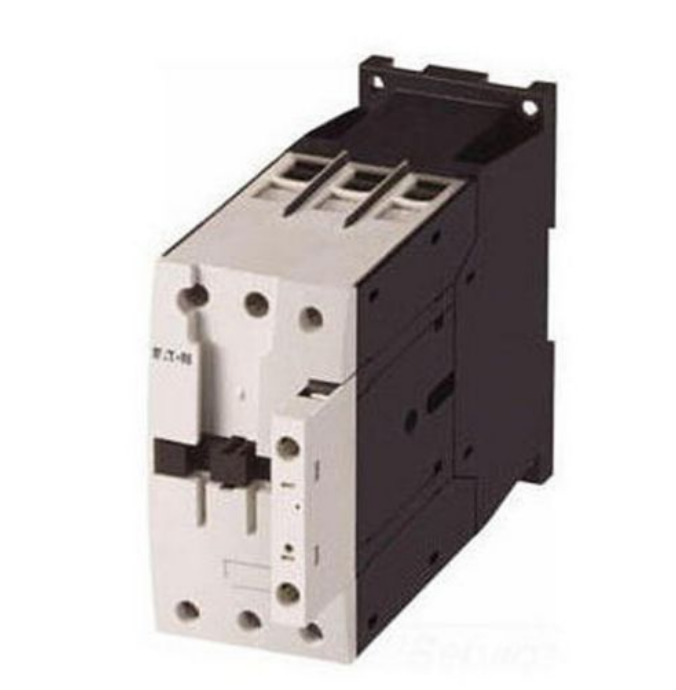

277766DILM40
(230V50HZ,240V60HZ) Eaton Moeller | 3 pole contactor
DILM40(230V50HZ,240V60HZ) - Contactor,
3 pole, 380 V 400 V 18.5 kW, 230 V 50 Hz, 240 V 60 Hz, AC operation, Screw terminals
General specifications
Product name
Eaton Moeller® series DILM contactor
Part no.
DILM40(230V50HZ,240V60HZ)
EAN
4015082777661
Product Length/Depth
132.1 millimetre
Product height
115 millimetre
Product width
55 millimetre
Product weight
0.872 kilogram
Compliances
CE Marked
Certifications
UL 508
IEC 60947-4-1
CSA Std. C22.2 No. 14-05
EN 60947-4-1
UL Listed
CSA Certified
UL 60947-4-1
VDE 0660
CSA
UL
CE
UL File No.: E29096
IEC/EN 60947-4-1
UL Category Control No.: NLDX
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 2411-03, 3211-04
CSA File No.: 012528
IEC 60947-4-1
CSA Std. C22.2 No. 14-05
EN 60947-4-1
UL Listed
CSA Certified
UL 60947-4-1
VDE 0660
CSA
UL
CE
UL File No.: E29096
IEC/EN 60947-4-1
UL Category Control No.: NLDX
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 2411-03, 3211-04
CSA File No.: 012528
Product Tradename
DILM
Product Type
Contactor
Product Sub Type
None
Catalog Notes
Contacts according to EN 50012
General information
Application
Contactors for Motors
Degree of protection
IP00
Frame size
FS3
Lifespan, mechanical
10,000,000 Operations (AC operated)
Operating frequency
5000 mechanical Operations/h (AC operated)
Overvoltage category
III
Pollution degree
3
Product category
Contactors
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
8000 V AC
Resistance per pole
1.9 mΩ
Eaton Moeller DILM40 3 Pole Contactors
| Part Name | Article Number | Rated Operational Current le A AC - 3 | Max. rating for three phase motors, 50 60 Hz | |||
| UL / CSA Hp | Aux Contacts | |||||
| 230 V | 460 V | NO | NC | |||
| DILM40 (110V50/60HZ) | 277772 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (110V50HZ,120V60HZ) | 277763 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (190V50HZ,220V60HZ) | 277764 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (220V50/60HZ) | 277773 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (220V50HZ,240V60HZ) | 277765 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (230V50/60HZ) | 277774 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (230V50HZ,240V60HZ) | 277766 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (240V50HZ) | 277755 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (24V50/60HZ) | 277770 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (24V50HZ) | 277753 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (380V50HZ,440V60HZ) | 277767 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (400V50HZ,440V60HZ) | 277768 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (415V50HZ,480V60HZ) | 277769 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (42V50/60HZ) | 277771 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (42V50HZ,48V60HZ) | 277762 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (RDC130) | 277782 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (RDC24) | 277780 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (RDC240) | 277783 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (RDC60) | 277781 | 40 | 15 | 30 | 0 | 0 |
