277830
DILM50(230V50HZ,240V60HZ)

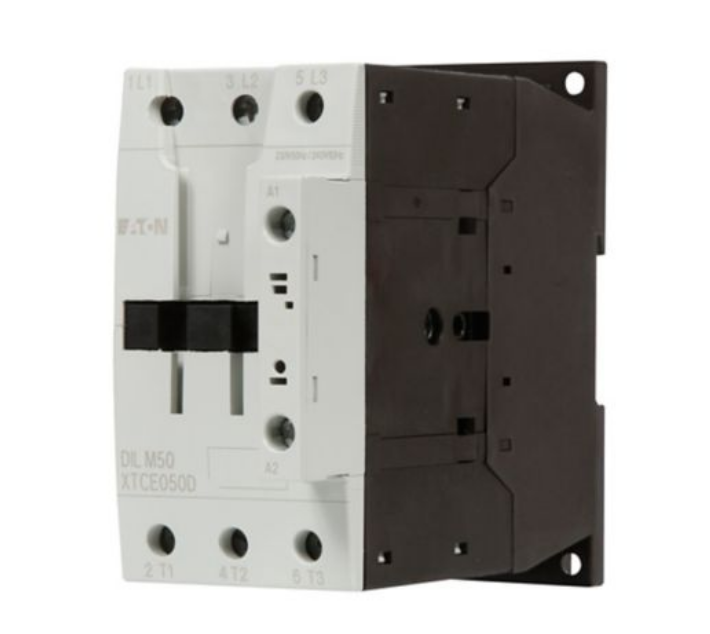

DILM50(230V50HZ,240V60HZ) - Contactor, 3 pole, 380 V 400 V 22 kW, 230 V 50 Hz, 240 V 60 Hz, AC operation, Screw terminals
General specifications
Product name
Eaton Moeller® series DILM contactor
Part no.
DILM50(230V50HZ,240V60HZ)
EAN
4015082778309
Product Length/Depth
132.1 millimetre
Product height
115 millimetre
Product width
55 millimetre
Product weight
0.872 kilogram
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-05
IEC 60947-4-1
UL 508
EN 60947-4-1
UL Listed
CSA Certified
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLDX
UL 60947-4-1
CSA Class No.: 2411-03, 3211-04
IEC/EN 60947-4-1
UL File No.: E29096
CE
CSA File No.: 012528
UL
CSA
VDE 0660
IEC 60947-4-1
UL 508
EN 60947-4-1
UL Listed
CSA Certified
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLDX
UL 60947-4-1
CSA Class No.: 2411-03, 3211-04
IEC/EN 60947-4-1
UL File No.: E29096
CE
CSA File No.: 012528
UL
CSA
VDE 0660
Product Tradename
DILM
Product Type
Contactor
Product Sub Type
None
Catalog Notes
Contacts according to EN 50012
General information
Application
Contactors for Motors
Degree of protection
IP00
Frame size
FS3
Lifespan, mechanical
10,000,000 Operations (AC operated)
Eaton DILM50 3 Pole Contactor order information
| Part Name | Article Number | Rated Operational Current le A AC - 3 | Max. rating for three phase motors, 50 60 Hz | |||
| UL / CSA Hp | Aux Contacts | |||||
| 230 V | 460 V | NO | NC | |||
| DILM50 (110V50/60HZ) | 277836 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (110V50HZ,120V60HZ) | 277827 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (190V50HZ,220V60HZ) | 277828 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (220V50/60HZ) | 277837 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (220V50HZ,240V60HZ) | 277829 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (230V50/60HZ) | 277838 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (230V50HZ,240V60HZ) | 277830 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (240V50HZ) | 277819 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (24V50/60HZ) | 277834 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (24V50HZ) | 277817 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (380V50HZ,440V60HZ) | 277831 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (400V50HZ,440V60HZ) | 277832 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (415V50HZ,480V60HZ) | 277833 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (42V50/60HZ) | 277835 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (42V50HZ,48V60HZ) | 277826 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (RDC130) | 277846 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (RDC24) | 277844 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (RDC240) | 277847 | 50 | 20 | 40 | 0 | 0 |
| DILM50 (RDC60) | 277845 | 50 | 20 | 40 | 0 | 0 |
