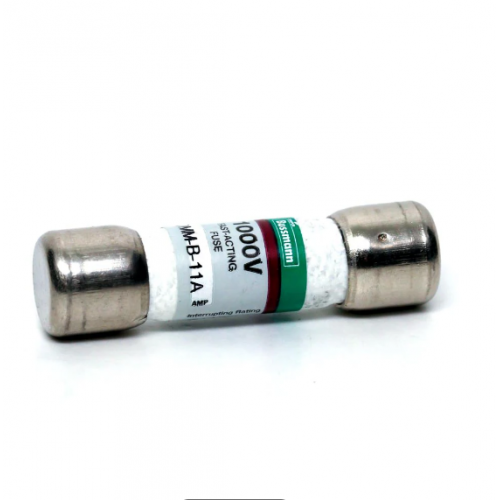

DMM-B 13⁄32˝ x 1-3/8˝ and 1-1/2” 1000Vac/dc fast-acting fuses for multi-meters
Specifications:
| Datasheet - DMM FUSE - BUSSMANN | |
| Part no. | DMM FUSE - BUSSMANN |
| Article no. | DMM-B-11A |
| Catalog No. | DMM-B-11A |
| Delivery program | |
| Product range | Fuse |
| Basic function | Fuse-link |
| Field of application | low voltage |
| Rated current | 11 |
| Rated voltage | AC 1000 V DC 1000 V |
| Size | 10 x 38 mm |
| usable for size/applications | Multimeters only |
| Release characteristic | fast-acting |
| Standard/Approval | UL |
| Shape | cylindrical |
| Standards/Regulations | UL 248-14 |
Temperature specifications
DMM-B-44/100 - Maximum temperature 28°C in 22°C ambient temperature when carrying 100% of rated current.
DMM-B-11A - Maximum temperature 69°C in a 22°C ambient temperature when carrying 100% of rated current.
Catalog numbers (amps)
DMM-B-44/100 DMM-B-11A
