DPC625

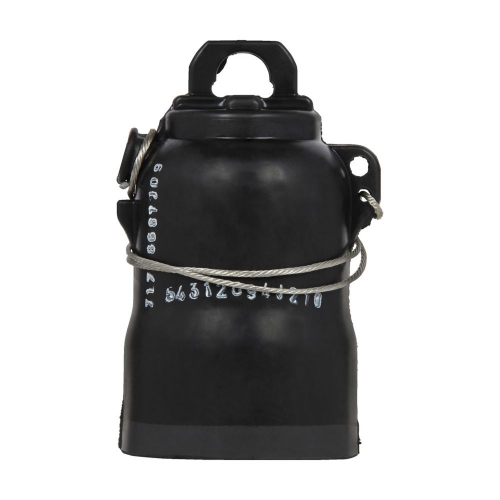

Eaton Cooper Power series deadbreak protective cap,
Drain wire with permanent studs, 15/25 kV,
Phase to ground: 15.2 kV, AC 1 min: 40.0 kV, DC 15 min: 78.0 kV, BIL: 125.0 kV,
Min corona: 19.0 kV, 15 Kit bulk pack, 600 A
| GENERAL SPECIFICATIONS | |
| PRODUCT NAME | Eaton Cooper Power series deadbreak protective cap |
| CATALOG NUMBER | DPC625 |
| UPC | 194006070911 |
| PRODUCT LENGTH/DEPTH | 3.25 in |
| PRODUCT HEIGHT | 5.8 in |
| PRODUCT WIDTH | 3.6 in |
| PRODUCT WEIGHT | 1.709 lb |
| COMPLIANCES | Not Applicable |
| CERTIFICATIONS | IEEE Std 386 |
| ELECTRICAL RATINGS | |
| AC 1 MINUTE VOLTAGE WITHSTAND | 40.0 kV |
| BASIC IMPULSE LEVEL | 125.0 kV |
| CURRENT RATING | 600A |
| RATING PHASE-TO-GROUND -MAX | 15.2 kV |
| STANDARD VOLTAGE CLASS | 15/25 kV |
