- Specification
- Datasheet download

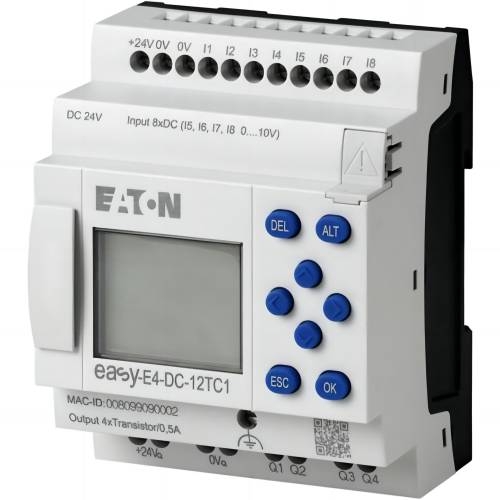

Control relays easyE4 with display (expandable, Ethernet), 24 V DC, Inputs Digital: 8, of which can be used as analog: 4, screw terminal
| Datasheet - EASY-E4-DC-12TC1 | |
| Control relays easyE4 with display (expandable, Ethernet), 24 V DC, Inputs Digital: 8, of which can be used as analog: 4, screw terminal | |
| Part no. | EASY-E4-DC-12TC1 |
| Article no. | 25452533 |
| Product name | Eaton Moeller® series EASY Control relay |
| Part no. | EASY-E4-DC-12TC1 |
| EAN | 4015081939466 |
| Product Length/Depth | 58 millimetre |
| Product height | 90 millimetre |
| Product width | 72 millimetre |
| Product weight | 0.2 kilogram |
| Product Tradename | EASY |
| Product Type | Control relay |
| Product Sub Type | None |
| Catalog Notes | Accuracy of the real-time clock depending on ambient air temperature - fluctuations of up to ± 5 s/day (± 0.5 h⁄year) are possible |
| Features | Parallel connection of transistor outputs with resistive load, inductive load with external suppressor circuit, combination within a group - Group 1: Q1 to Q4 Networkable (Ethernet) Expandable Display indication of 6 lines x 16 characters |
| Fitted with: | Keypad Display Real time clock Timer |
| Functions | Thermal cutout |
