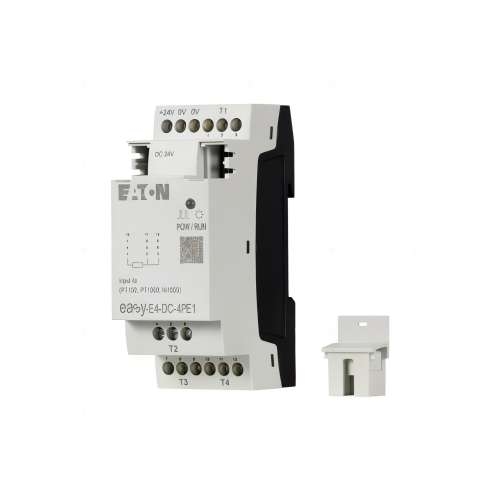

EASY-E4-DC-4PE1 - I/O expansion, For use with easyE4, 24 V DC, Inputs expansion (number) analog: 4, screw terminal
| Datasheet - EASY-E4-DC-4PE1 | |
| I/O expansion, For use with easyE4, 24 V DC, Inputs expansion (number) analog: 4, screw terminal | |
| Part no. | EASY-E4-DC-4PE1 |
| Article no. | 25449868 |
| Product name | Eaton Moeller® series EASY I/O expansion |
| Part no. | EASY-E4-DC-4PE1 |
| EAN | 4015080892854 |
| Product Length/Depth | 58 millimetre |
| Product height | 90 millimetre |
| Product width | 36 millimetre |
| Product weight | 0.1 kilogram |
| Product Tradename | EASY |
| Product Type | I/O expansion |
| Product Sub Type | None |
| Features | Additional measurement aids: Filtering (software), smoothing of analog input signal (PT1 behavior), only with set sampling time, selectable per sensor: yes Expandable Expansion device Measuring principle: Two or three wire per sensor, selectable by connection of sensor |
| Functions | Card diagnostic Diagnostics below lower measurement range |
