ESP15RB1 Eaton Bussmann 1500VDC aBat Fuse
| Product Name | Eaton Bussmann 1500VDC high speed square body fuse |
| Catolog Number | ESP15RB1 |
| Rated Amperage | 100-630A |
| Rated Voltage | 1500V |
| Datasheet | |
| Product Length | 180mm |
| Product Height | 51mm |
| Product Width | 80mm |
| Product Weight | 1357g |
| Class | Class aBat |
| Product Type | High speed fuse |
| Voltage Type | DC |
| Package Type | Standard |
| Breaking Capacity | 50 kA |
| Certification | TUV, UL |

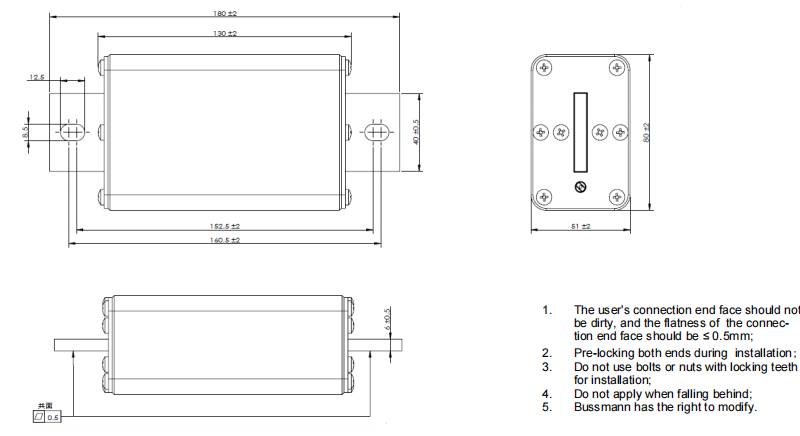

ESP15RB1 Dimension -mm
ESP15RB1 Family
| PN | Voltage | Current |
| ESP15RB1-630 | 1,500 | 630 |
| ESP15RB1-550 | 1,500 | 550 |
| ESP15RB1-500 | 1,500 | 500 |
| ESP15RB1-450 | 1,500 | 450 |
| ESP15RB1-400 | 1,500 | 400 |
| ESP15RB1-350 | 1,500 | 350 |
| ESP15RB1-315 | 1,500 | 315 |
| ESP15RB1-250 | 1,500 | 250 |
| ESP15RB1-200 | 1,500 | 200 |
| ESP15RB1-160 | 1,500 | 160 |
| ESP15RB1-125 | 1,500 | 125 |
| ESP15RB1-100 | 1,500 | 100 |
