Bussmann DC fuses —

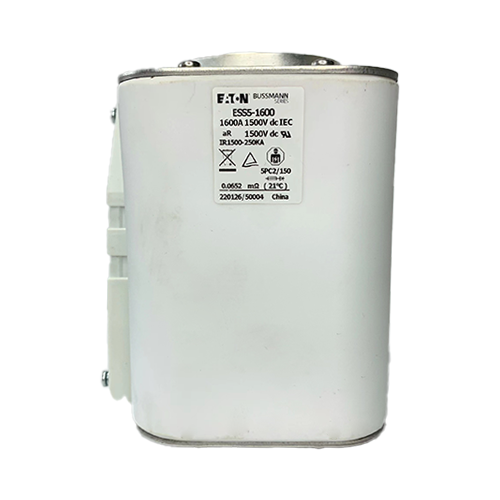

ESS5 series (1500 Vdc / 630A-1800A)
| Basic information | |
| Part number | ESS5-xxx |
| Voltage rating | 1500VDC |
| Current Ratings | 630A—1800A |
| Untilisation class | aR |
| Breaking capacity | 250kA TC:4ms |
| Standard | IEC60269.4/UL248-13 |
| Certification | UL |
| Technical parameter: | ||||||
| P/N | Current Rating (A) | Pre-arcing l2t (A2s) | Total l2t (A2s) | Power Loss at in (W) | Power Loss at 0.8xln (W) | Power Loss at 0.5xln (W) |
| ESS5-630 | 630 | 169,000 | 1,098,000 | 183 | 99 | 45 |
| ESS5-700 | 700 | 200,000 | 1,434,000 | 192 | 104 | 47 |
| ESS5-800 | 800 | 320,000 | 2,081,000 | 202 | 109 | 49 |
| ESS5-900 | 900 | 467,000 | 3,035,000 | 212 | 115 | 52 |
| ESS5-1000 | 1,000 | 658,000 | 4,280,000 | 233 | 126 | 57 |
| ESS5-1100 | 1,100 | 804,000 | 5,228,000 | 241 | 130 | 59 |
| ESS5-1250 | 1,250 | 1,140,000 | 7,410,000 | 262 | 142 | 64 |
| ESS5-1350 | 1,350 | 1,430,000 | 9,290,000 | 273 | 147 | 67 |
| ESS5-1500 | 1,500 | 1,870,000 | 12,140,000 | 286 | 155 | 70 |
| ESS5-1600 | 1,600 | 2,450,000 | 15,910,000 | 284 | 154 | 69 |
| ESS5-1800 | 1,800 | 3,170,000 | 20,570,000 | 315 | 170 | 77 |
