Eaton Bussmann DC contactor in Electric Vehicle
- Specification
- Datasheet download
1. Part number designation
2, Technical parameters
Parameters | EVC-A - 300S |
Main contact | |
Contact form（main） | Single-pole single-throw – Normally Open |
Rated voltage | 12-750VDC |
Rated current | 300A |
Short-time withstand current | 3,600 sec. 450A，1,200 sec. 600A， 60 sec.900A |
(see 5, curve) | |
Operation time，23℃ | |
Closing time | ≤ 30ms |
Release time | ≤ 10ms |
Min. continuity load | 1A 12VDC |
Max breaking current | 2,500A 450VDC 1 time |
Contact resistance（Under rated current, initial value） | ＜0.4mΩ |
Electrical performance | |
300A 450VDC 3,000 times | |
Electrical life | 300A 750VDC 1,000 times |
Switch off overload | 400A 800VDC 20 times |
Insulation resistance | ＞1,000MΩ（1,000VDC） （After the life test: 50 MΩ） |
Dielectric withstand voltage （ Between contacts, between contacts and coils） | 2,500VAC，1 min.（leakage current ≤ 1mA） |
Mechanical performance | |
Shock resistance-Malfunction | Half sine wave，11ms，196m/s² |
Shock resistance-Destruction | Half sine wave，6ms，490m/s² |
Random vibration | 10-2,000Hz，57.9m/s² |
Mechanical life | 200,000 times |
Weight | About 750g |
Environmental requirements | |
Ambient operating temperature range | -40℃～+85℃ |
Humidity range | 5%～95%RH |
3. Coil parameters
Parameter | EVC-AS-300S | EVC-AT-300S |
Coil series number | S | T |
Coil operating voltage | 12VDC | 24VDC |
Coil voltage（Max.） | 16VDC | 32VDC |
Operating voltage，25°C（Max.） | 9VDC | 18VDC |
Release voltage，25°C（Min.） | 1.2VDC | 2.4VDC |
Max. input inrush current（100ms） | 2.8A | 1.4A |
Maintain operating current（25°C） | 0.36A | 0.18A |
Coil power loss（25°C） | ||
Starting power | 35W | 35W |
Maintain power | 4.5W | 4.5W |
Pick up voltage，85℃（Max） | 9.6V | 19.2V |

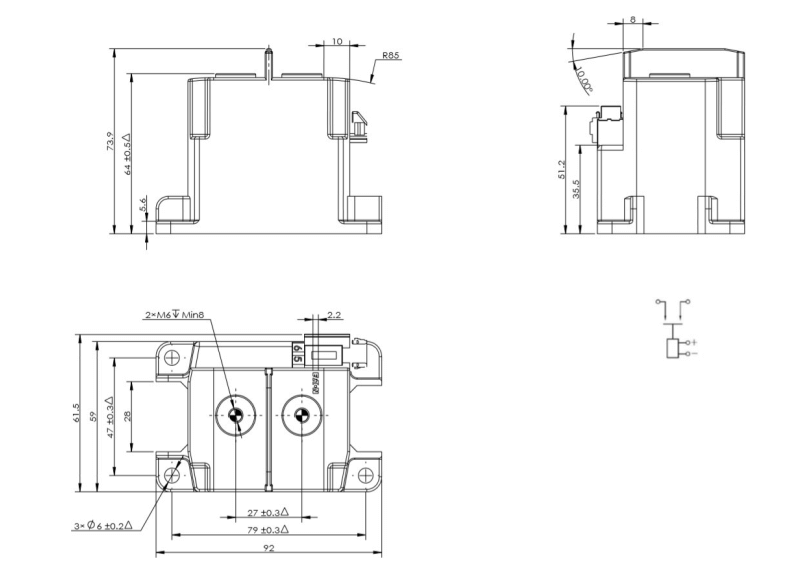

4, Drawing
5, Contactor cross reference
TE cross PN : V23720
