Bussmann dual element time delay fuse provide motor overload and short circuit protection.permit the use of smaller and less costly switches;Better short circuit component protection(Current limiting). FNQ-R-2, SC-1. etc
- Specification
- Datasheet download
FNA-4 Bussmann Supplemental Time-Delay fuse
| Product name | Eaton Bussmann series FNA fuse |
| Part no. | FNA-4 |
| Voltage Rating | 250VAC |
| Current Rating | 4A |
| Datasheet | |
| Product Length | 1.5in |
| Product height | 0.406in |
| Product width | 0.406in |
| Product weight | 0.15lb |
| Fuse Type | Time-Delay Fuse |
| Connection | Ferrule end x ferrule end |
| Number of Elements | Dual |
| CAD,3D Stp | Contact us |

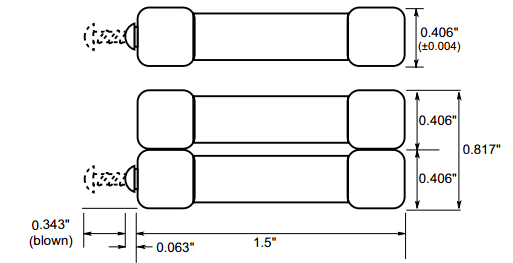

FNA Fuse Dimension -in
Bussmann dual element time delay fuse provide motor overload and short circuit protection.permit the use of smaller and less costly switches;Better short circuit component protection(Current limiting). FNQ-R-2, SC-1. etc
