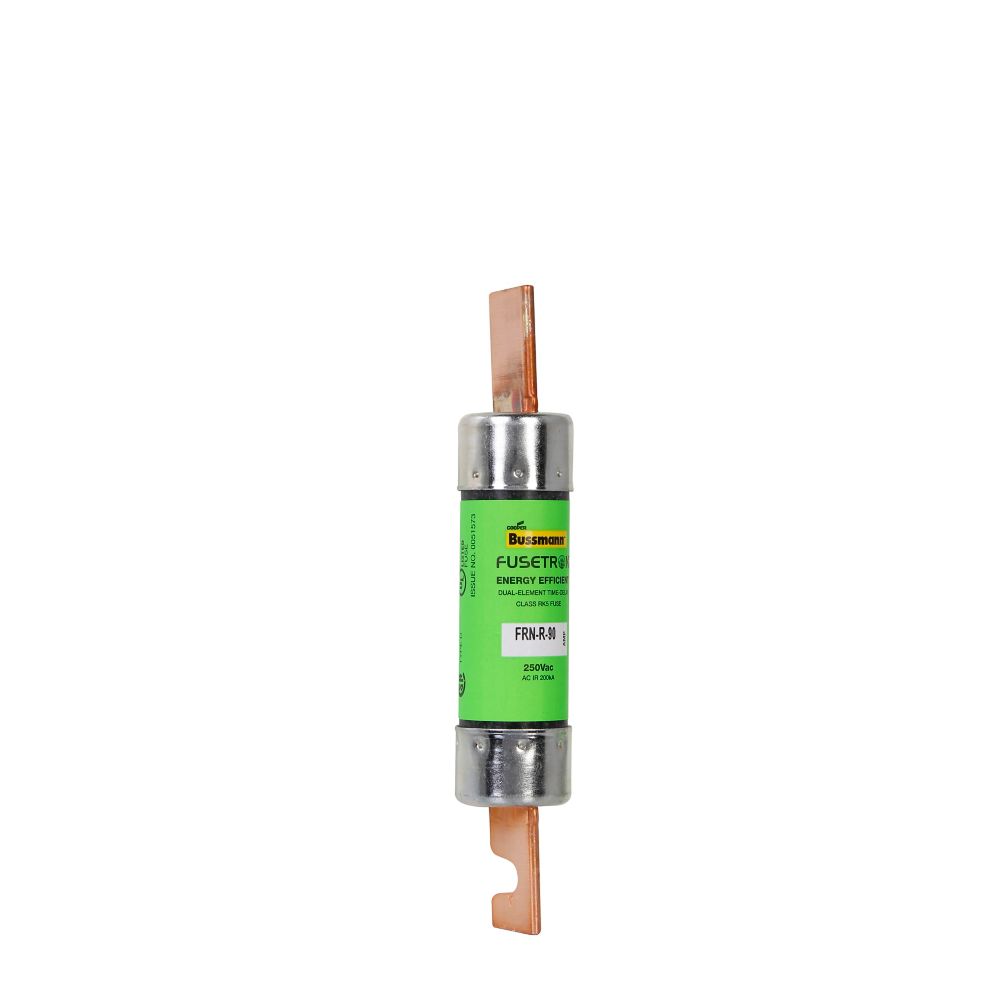

Eaton Bussmann series FRN-R-90 fuse
GENERAL SPECIFICATIONS
PRODUCT NAME Eaton Bussmann series FRN-R fuse
CATALOG NUMBER FRN-R-90
PRODUCT LENGTH/DEPTH 5 in
PRODUCT HEIGHT 0.81 in
PRODUCT WIDTH 0.81 in
PRODUCT WEIGHT 0.15 lb
COMPLIANCES CE Marked
ELECTRICAL RATING
AMPERAGE RATING 90 A
INTERRUPT RATING 20 kAIC at 125 Vdc
200 kAIC at 250 Vac
RESPONSE TIME 10 sec at 500%
VOLTAGE RATING 250 Vac, 125 Vdc
GENERAL INFORMATION
CLASS Class RK5
CONNECTION Blade end x blade end
