FRS-R-100 Bussmann Time Delay Class RK5 Fuse
| Product name | Eaton Bussmann series FRS-R fuse |
| Part no. | FRS-R-100 |
| Voltage Rating | 600VAC, 300VDC |
| Current Rating | 100A |
| Datasheet | |
| Product Length | 7.88in |
| Product height | 1.11in |
| Product width | 1.11in |
| Product weight | 0.4lb |
| Fuse Type | Dual ELement Time Delay Fuse |
| Connection | Blade end x blade end |
| Class | Class RK5 Fuse |
| CAD,3D Stp | Contact us |

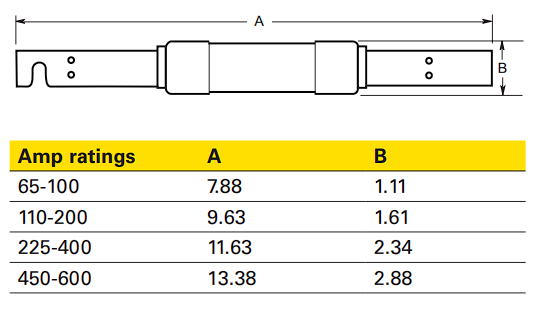

FRS-R Fuse Dimension -in
FRS-R-100 Fuse Cross Reference
Littelfuse: FLSR100
Mersen: TRS100R
