JJS-125 Bussmann 600V Class T Limitron Fast Acting Fuse
| Product Name | Cooper Bussmann 600V Fast Acting Class T Fuse JJS Fuse |
| Catolog Number | JJS-125 |
| Rated Amperage | 125A |
| Rated Voltage | 600VAC |
| Datasheet | |
| Product Length | 3.25 in |
| Product Diameter | 0.88 in |
| Product Weight | 0.35 lb |
| Class | Class T Fuse |
| Voltage Type | AC |
| Package Type | Standard |
| Breaking Capacity | • 200kA Vac RMS Sym |
| 3D Model; CAD | Contact |
| Agency information | • cULus Listed file No. JDDZ.E4273 • UL 248-15 – Class T Fuses • CSA C22.2 No. 248.15 – Class T Fuses • CE • RoHS compliant |

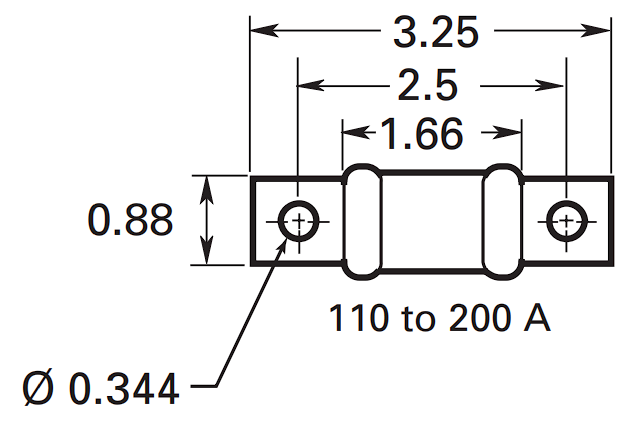

JJS Fuse 110-200A Dimensions -in
JJS Fuse Catalog Number-amp
| JJS-1 | JJS-30 | JJS-90 | JJS-250 |
| JJS-2 | JJS-35 | JJS-100 | JJS-300 |
| JJS-3 | JJS-40 | JJS-110 | JJS-350 |
| JJS-6 | JJS-45 | JJS-125 | JJS-400 |
| JJS-10 | JJS-50 | JJS-150 | JJS-450 |
| JJS-15 | JJS-60 | JJS-175 | JJS-500 |
| JJS-20 | JJS-70 | JJS-200 | JJS-600 |
| JJS-25 | JJS-80 | JJS-225 | JJS-800 |
