BUSSMANN SERIES CLASS J FUSES
| GENERAL SPECIFICATIONS | |

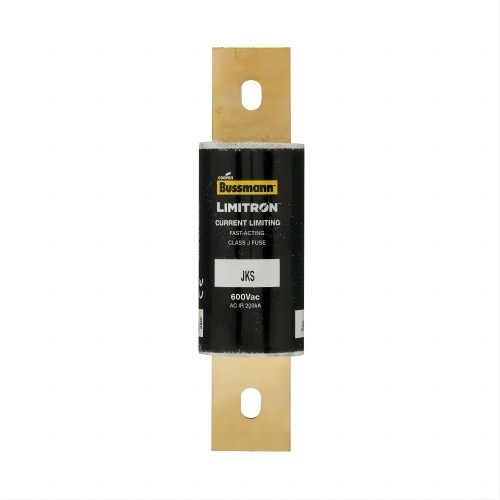

| PRODUCT NAME | Eaton Bussmann series JKS fuse |
| CATALOG NUMBER | JKS-450 |
| PRODUCT LENGTH/DEPTH | 8 in |
| PRODUCT WIDTH | 2.5 in |
| PRODUCT HEIGHT | 2.5 in |
| PRODUCT WEIGHT | 3.25 lb |
| COMPLIANCES | RoHS Compliant |
| AMPERAGE RATING | 450A |
| INTERRUPT RATING | 200 kAIC at 600 Vac |
| VOLTAGE RATING | 600 V |
| CLASS | Class J |
| CONNECTION | Bolted blade end x bolted blade end |
| FUSE INDICATOR | Non-indicating |
