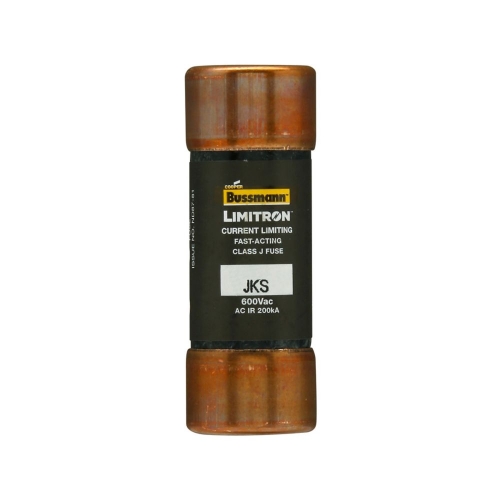

JKS-60 Specification | Class J Fuse | Cooper Bussmann
| Product Name | Eaton Bussmann Class J Fuse |
| Brand | Cooper Bussmann |
| Fuse Type | Fast Acting Fuse |
| Catolog Number | JKS-60 |
| Rated Amperage | 60A |
| Rated Voltage | 600VAC |
| Datasheet | |
| Product Length | 2.25 in |
| Product Diameter | 0.81 in |
| Product Weight | 1.15 lb |
| Class | Class J |
| Voltage Type | AC |
| Connection | Ferrule end x ferrule end |
| SPQ | 10 |
| Breaking Capacity | 200 kA |
| 3D Model; CAD | Contact us |
| Typical applications | • Power panelboards • Machinery disconnects |
| Agency Information | 600 Vac, UL Listed, Std. 248-8, Class J, Guide JDDZ, File E4273, CSA Certified, Class 1422-02, File 53787, CE |
JKS Series | Class J Fuse | Cooper Bussmann
| JKS-1 | JKS-15 | JKS-70 | JKS-225 |
| JKS-2 | JKS-20 | JKS-80 | JKS-250 |
| JKS-3 | JKS-25 | JKS-90 | JKS-300 |
| JKS-4 | JKS-30 | JKS-100 | JKS-350 |
| JKS-5 | JKS-35 | JKS-110 | JKS-400 |
| JKS-6 | JKS-40 | JKS-125 | JKS-450 |
| JKS-8 | JKS-45 | JKS-150 | JKS-500 |
| JKS-10 | JKS-50 | JKS-175 | JKS-600 |
| JKS-12 | JKS-60 | JKS-200 |
