Bussmann JM60030-1CR Class J Fuse Holder
| Product Name | Eaton Bussmann Class J Fuse Holder |
| Brand | Cooper Bussmann |
| Catalog Number | JM60030-1CR |
| Rated Amperage | 0-30A |
| Rated Voltage | 600V |
| Product Length | 3.438 in |
| Product Height | 2.25 in |
| Product Width | 1.125 in |
| Product Weight | 0.124 lb |
| Datasheet | |
| Class | Class J |
| Number of Poles | 1 pole |
| SPQ | 1 |
| Withstand rating | 200 kA |
| 3D Model; CAD | Contact us |
| Agency Information | UL Listed CSA Certified |
0-30A Class J Fuse Holder Catalog Number
| Fuse | Terminal type | Optional covers" | |||||
| amp range | Poles | Box lug/slot screw | Box lug/hex screw | #10-32 Phil-slot screw | Pressure plate | Indicating | Non-indicating |
| up to 30 | 1 | JM60030-1CR | JM60030-1CHR | JM60030-1SR | JM60030-1PR | CVRIJ-60030 | CVRJ-60030 |
| 2 | JM60030-2CR | JM60030-2CHR | JM60030-2SR | JM60030-2PR | |||
| 3 | JM60030-3CR | JM60030-3CHR | JM60030-3SR | JM60030-3PR | |||

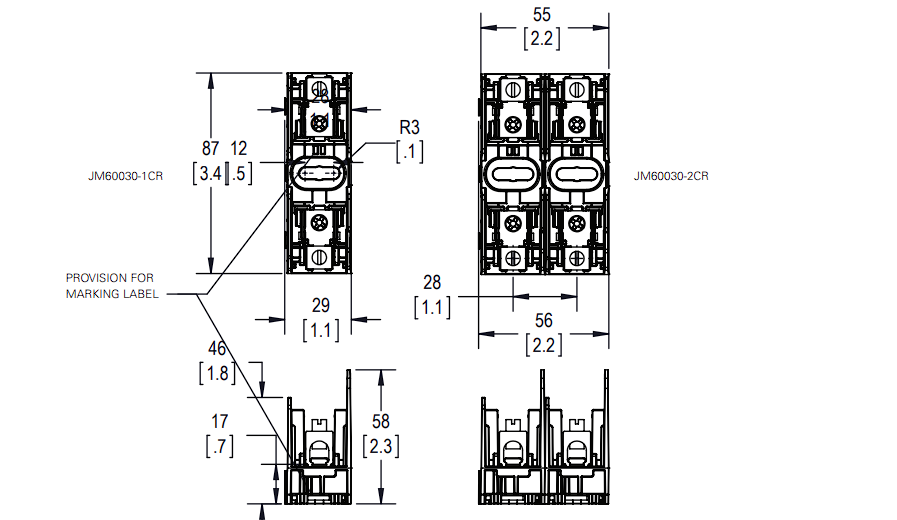

0-30A (JM60030-1CR, JM60030-2CR) Class J Fuse Holder Dimensions-in
