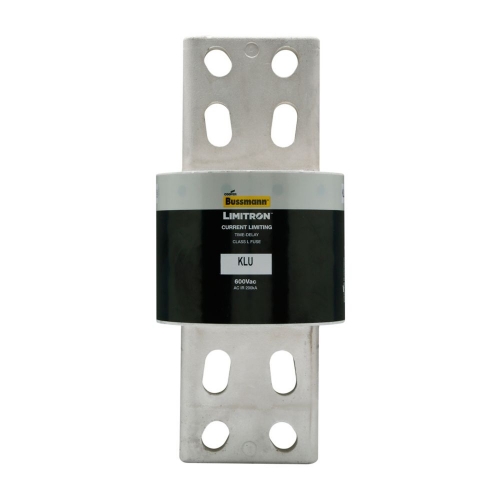

KLU-2500 Bussmann Limitron Time Delay Class L Fuse
| Product Name | Eaton Bussmann KLU Limitron Current Limiting Class L Fuse |
| Brand | Cooper Bussmann |
| Catolog Number | KLU-2500 |
| Rated Amperage | 2500A |
| Rated Voltage | 600VAC |
| Datasheet | |
| Product Length | 10.75 in |
| Product Diameter | 5 in |
| Product Weight | 15.95 lb |
| Class | Class L |
| Voltage Type | AC |
| Fuse Size | Limitron |
| SPQ | 1 |
| Breaking Capacity | 200 kA |
| 3D Model; CAD | Contact us |
| Agency Information | UL Listed, Std 248-10, Class L, Guide JDDZ, File E4273, CSA Certified, CSA Class 1422-02, File 53787, RoHS compliant, CE |
Bussmann® series Advanced protection KLU Class L time-delay, current-limiting fuses. Time-delay
seconds (minimum) at 500% of rated current.
Bussmann KLU Fuse Feature:
• 200 kA interrupting rating provides protection at all circuit locations
• Economical protection for high-fault current circuits
KLU Fuse Application:
• Large distribution switchboards
• Power panelboards
• Large machinery disconnects
Bussmann KLU Catalog no. (amps)
| KLU-601 | KLU-1600 |
| KLU-650 | KLU-1800 |
| KLU-700 | KLU-2000 |
| KLU-800 | KLU-2500 |
| KLU-1000 | KLU-3000 |
| KLU-1200 | KLU-4000 |
| KLU-1500 |
Dimensions -in
