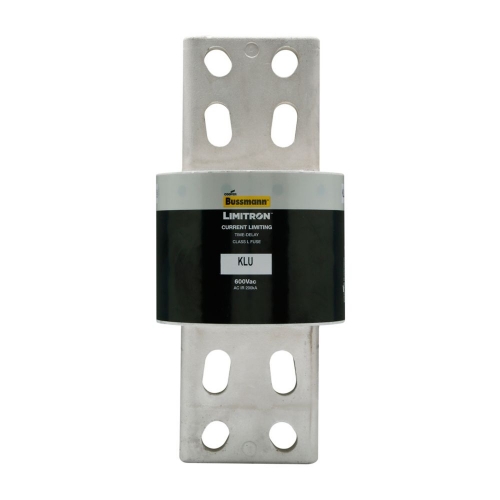

KLU-4000 Class L Fuse | Bussmann Time Delay
| Product Name | Eaton Bussmann series KLU Class L Time Delay Fuse |
| Catolog Number | KLU-4000 |
| Rated Amperage | 4000A |
| Rated Voltage | 600V |
| Datasheet | Contact |
| Product Height | 5.75 in |
| Product Length | 10.75 in |
| Product Width | 5.75 in |
| Product Weight | 22.15 lb |
| Class | Class L Fuse |
| Voltage Type | AC |
| Mounting Method | Bolt |
| Breaking Capacity | 200kA |
| 3D Model; CAD | Contact |
| Application | • Large distribution switchboards • Power panelboards • Large machinery disconnects |
| Agency Information | UL Listed, Std 248-15, Class T, Guide JDDZ, File E4273, CSA Certified, Class 1422-02, File 53787, RoHS compliant, CE |
Bussmann Fuse, Semiconductor Fuse, Time Delay Fuse, High Speed Fuse, Class J Fuse, Class T Fuse, Class cc fuse, Class RK1 Fuse, Class RK5 Fuse, Class L Fuse, DC Contactor, Disconnect Switch, Car Fuse, Current Limiting Fuse, HV Fuse, Bussmann Fuse Holder, AC Fuse, DC Fuse
You can ask any Bussmann fuse and fuse cross reference(Littelfuse, Mersen, etc).
