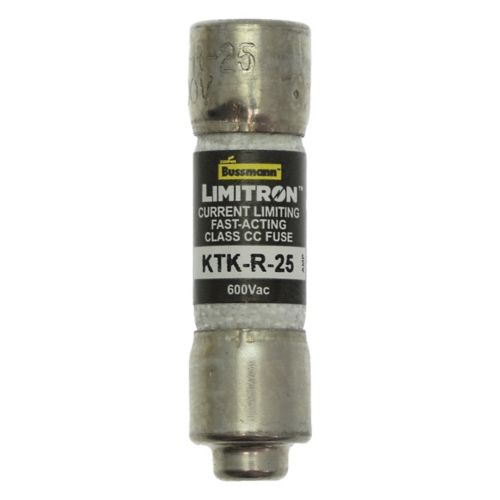

KTK-R-25 Bussmann Limitron Fast Acting Class CC Fuse
| Product Name | Eaton Bussmann KTK-R fuse |
| Catolog Number | KTK-R-25 |
| Rated Amperage | 25A |
| Rated Voltage | 600VAC |
| Datasheet | |
| Product Height | 1.5 in |
| Product Diameter | 0.14 in |
| Product Weight | 0.15 lb |
| Fuse Type | Fast Acting Fuse |
| Voltage Type | AC |
| Class | Class CC Fuse,Type cc Fuse |
| Breaking Capacity | 200kA RMS |
| 3D Model; CAD | stp |
| Special Feature | Rejection style |
| Certification | UL,CE |
Features:
• Class CC rejection feature, with appropriate fuse block, prevents inserting lesser-rated supplementary fuses
• Current limitation at Class CC levels provides maximum component short-circuit current protection
• 200 kA interrupting rating provides high ratings for control circuit locations
KTK-R Fuse Catalog Number
| KTK-R-1/10 | KTK-R-6/10 | KTK-R-3-1/2 | KTK-R-10 |
| KTK-R-1/8 | KTK-R-3/4 | KTK-R-4 | KTK-R-12 |
| KTK-R-2/10 | KTK-R-1 | KTK-R-5 | KTK-R-15 |
| KTK-R-1/4 | KTK-R-1-1/2 | KTK-R-6 | KTK-R-20 |
| KTK-R-3/10 | KTK-R-2 | KTK-R-7 | KTK-R-25 |
| KTK-R-4/10 | KTK-R-2-1/2 | KTK-R-8 | KTK-R-30 |
| KTK-R-1/2 | KTK-R-3 | KTK-R-9 |
KTK-R Fuse Dimensions
Class CC Fuse Holder Recommend
| Fuse class | Catalog symbol | Blocks | DIN-Rail holders | Panel mount holders | In-line holders |
| cc | FNQ-R KTK-R LP-CC | BCM 3743 4421 4515 | CHCC OPM-1038 OPM-NG CCP2-CC | HPF-RR HPS-RR CCPLP | HEY HEZ |
