Littelfuse-0HEV015.ZXISO-HEV Fuse

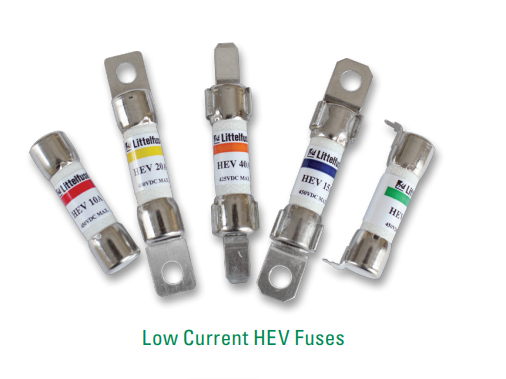

Low Current HEV Fuse

The LC HEV fuse is designed for protection of high-voltage accessory circuits in electric and hybrid electric vehicles.

Specifications

Voltage Rating (10A, 15A, 20A, 30A):                      450 VDC

Voltage Rating (40A):                                              425 VDC

Note: The 0HEV040.ZXBD is rated at 450 VDC

Interrupting Rating (10A, 15A, 20A, 30A):              10kA @ 450 VDC

Interrupting Rating (40A):                                      10kA @ 425 VDC

Operating Temperature Range:                              -40ºC to +125ºC

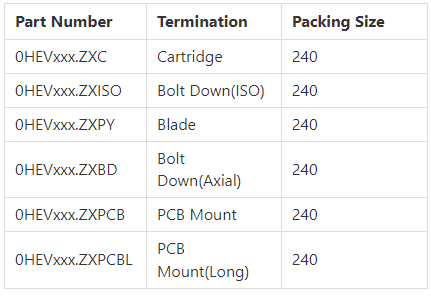

Ordering Information

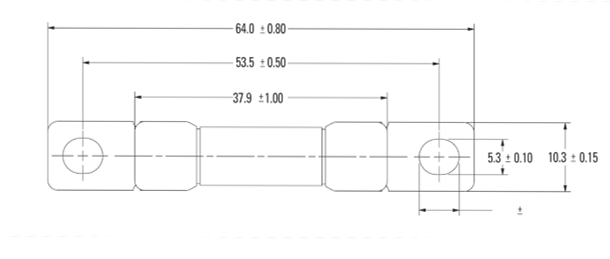

Dimension mm.
