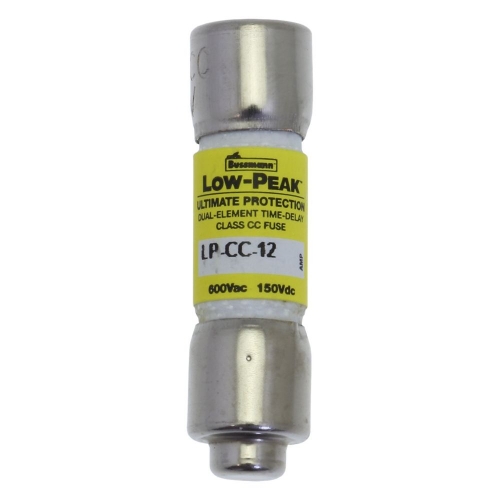

LP-CC-12 Bussmann Class cc Fuse Low Peak Time Delay

LP-CC-12 Bussmann Class cc Fuse Low Peak Time Delay

Manufacturer：Bussmann

Description :12A 600VAC Class cc Fuse, Low Peak Time delay Fuse, in line fuse

Stock quantity(PCS) :0

Lead time ( Weeks ) :10

Categories：12A fuse, Class CC Fuse, Time Delay Fuse, Low Peak Fuse, LP-CC Fuse

Browse：
Chat Now
Inquiry now
  • Specification
  • Datasheet download

LP-CC-12  Bussmann Class cc Fuse Low Peak Time Delay


Product NameEaton Bussmann LP-CC fuse
Catolog NumberLP-CC-12
Rated Amperage12A
Rated Voltage600VAC
DatasheetPDF
Product Height1.5 in
Product Diameter0.14 in
Product Weight0.15 lb
ClassTime Delay
Voltage TypeAC,DC
ClassClass CC Fuse,Type cc Fuse
Breaking Capacity200kA RMS
3D Model; CADstp
ConnectionFerrule end x ferrule end
CertificationUL,CE



LP-CC Fuse Typical applications

• Branch circuit protection

• Specialized circuits

• Industrial controls and panels

• Isolated, in-line fuse holder



Class CC Fuse Holder


Catalog symbolAmp rangeDIN- -Rail Fuse blocks*DIN- -Rail Fuse HolderInline holders*Panel mount holders"
FNQ-R
KTK-R LP-CC		Up to 30BCM603CHCC
OPM-NG
OPM-1038		HEY
HEZ		HPF-RR HPS-RR



LP-CC Fuse Catalog Number


LP-CC-1/2LP-CC-1-8 /10LP-CC-4-1/2LP-CC-10
LP-CC-6/10LP-CC-2LP-CC-5LP-CC-12
LP-CC-8/10LP-CC-2-1/4LP-CC -5-6/10LP-CC-15
LP-CC-1LP-CC-2-1/2LP-CC-6LP-CC-20
LP-CC-1-1/8LP-CC-2-8/10LP-CC-6-1/4LP-CC-25
LP-CC-1-1/4LP-CC-3LP-CC-7LP-CC-30
LP-CC-1-4/10LP-CC-3-2/10LP-CC-7-1/2
LP-CC-1-1/2LP-CC-3-1/2LP-CC-8
LP-CC-1-6/10LP-CC-4LP-CC-9


Features

• Class CC rejection feature, with appropriate fuse block, prevents inserting lesser-rated supplementary fuses

• Time-delay coupled with Class CC current-limiting response provides close sizing on small motor and relay circuits, and maximum component short-circuit current rating protection

• 200 kA interrupting rating provides high ratings for control circuit locations

• Inventory consolidation of 13/32" x 1-1/2" supplemental fuses reduces SKU investment and minimizes potential for misapplying fuse

• Selective coordination ratio of 2:1 (within Low-Peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit
