GENERAL SPECIFICATIONS
| GENERAL SPECIFICATIONS | |

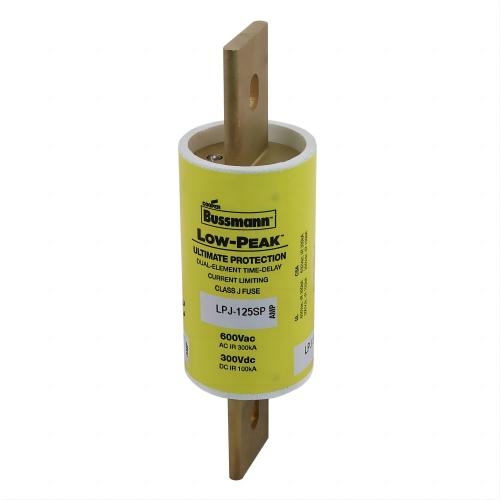

| PRODUCT NAME | Eaton Bussmann series LPJ fuse |
| CATALOG NUMBER | LPJ-125SP |
| PRODUCT LENGTH/DEPTH | 5.75 in |
| PRODUCT WIDTH | 2 in |
| PRODUCT HEIGHT | 0.81 in |
| PRODUCT WEIGHT | 0.75 lb |
| COMPLIANCES | CE Marked RoHS Compliant |
| AMPERAGE RATING | 125A |
| FUSE TYPE | Time delay Current-limiting |
| VOLTAGE RATING | 600 Vac, 300 Vdc |
| NUMBER OF ELEMENTS | Dual |
| CLASS | Class J |
LPJ-125SPI
Eaton Bussmann series LPJ fuse, Low-peak fuse, 125 A, Dual, Class J, With indicator, Bolted blade end x bolted blade end, Time delay|Current-limiting, 10 sec at 500%, 300 kAIC at 600 V|100 kAIC Vdc, Standard
