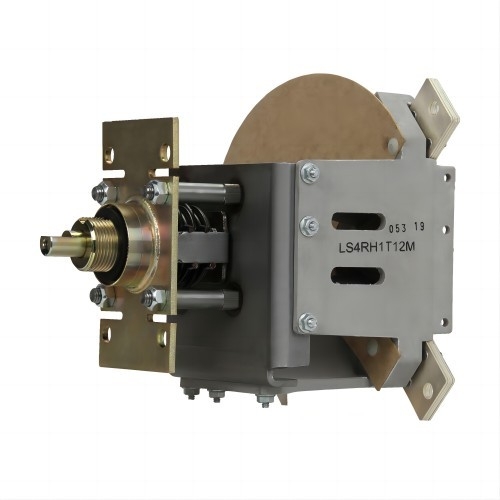

Eaton Cooper Power series four-position ring mount loadbreak switch
| GENERAL SPECIFICATIONS | |
| PRODUCT NAME | Eaton Cooper Power series four-position ring mount loadbreak switch |
| Part no. | LS4RH1T12M |
| PRODUCT LENGTH/DEPTH | 15 in |
| PRODUCT HEIGHT | 10.5 in |
| PRODUCT WIDTH | 10.5 in |
| PRODUCT WEIGHT | 12.346 lb |
| HANDLE OPTIONS | Cast brass, hotstick operable |
| PACKAGING | Individually boxed |
| SWITCH BLADE TYPE | T-Blade |
| SWITCH TYPE | Four-position loadbreak switch |
| CURRENT RATING | 630 A/300 A/200 A |
| VOLTAGE (PHASE-PHASE) - MAX | 15.5 kV/27.8 kV/38 kV |
| MOUNTING CONFIGURATION | Ring mount |
| Product datasheet | |
