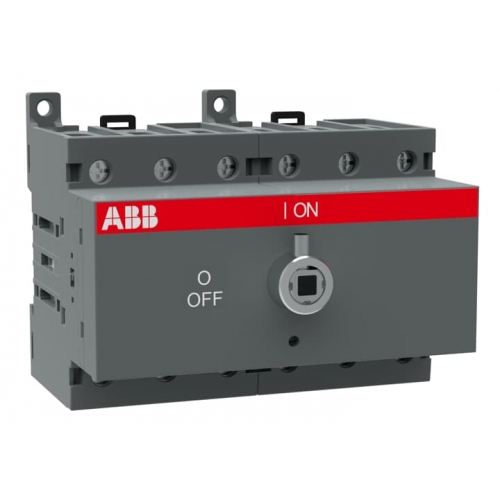

OT63F6 Specificaton | ABB Disconnect Switch
| Product Name | ABB Disconnect Switch |
| Catolog Number | OT63F6 |
| Rated Amperage | 63A |
| Rated Voltage | 600V |
| Poles | 6 pole |
| Datasheet | |
| MOQ | 1 pcs |
| Product Length | 84.5mm |
| Product Height | 91.5mm |
| Product Width | 105mm |
| Product Weight | 0.6kg |
| Standards | IEC 60947-3 / UL 508 / CSA C22.2 No. 14 |
| Operating Mode | Front operated |
| 3D Model; CAD | step |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp (240 V AC) Single Phase 7.5 Hp (440 ... 480 V AC) Single Phase 15 Hp (550 ... 600 V AC) Single Phase 15 Hp (220 ... 240 V AC) Three Phase 15 Hp (440 ... 480 V AC) Three Phase 30 Hp (550 ... 600 V AC) Three Phase 30 Hp |
