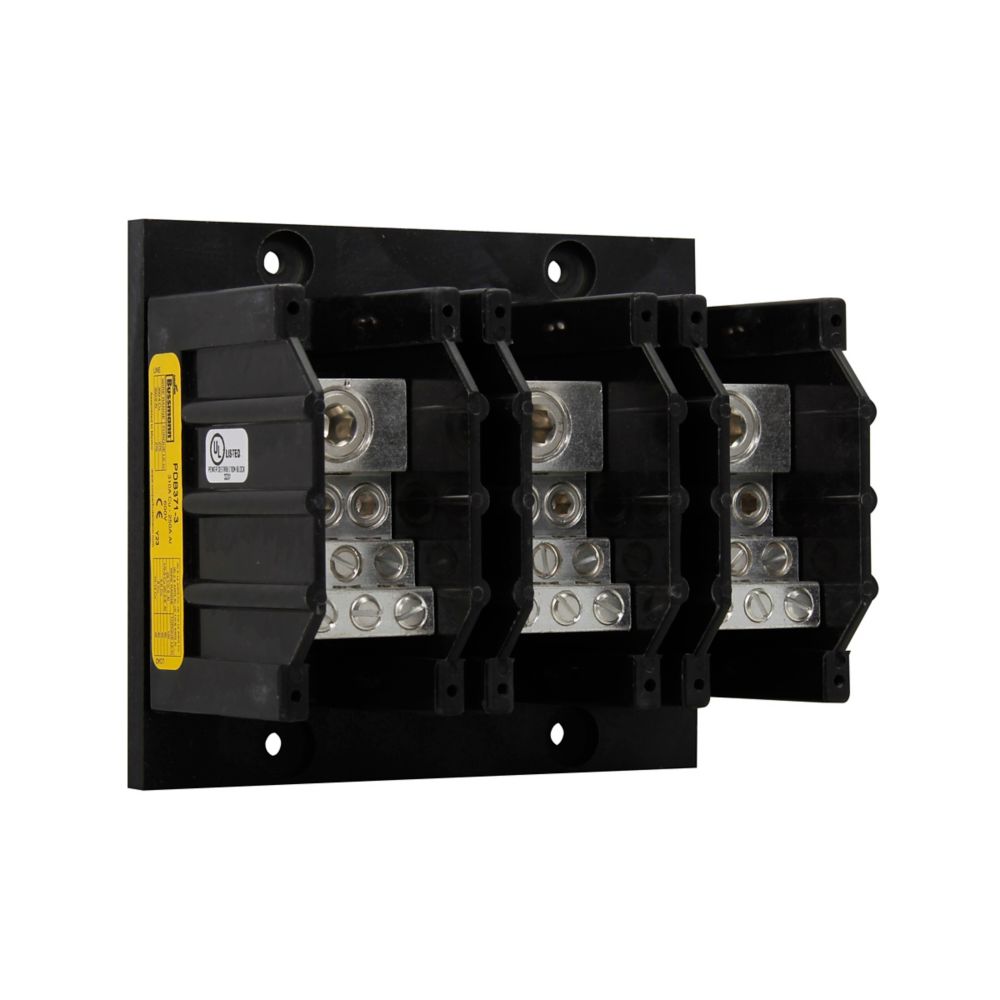

PDB371-3 in Stock Bussmann Power Distribution Block
| Product Name | PDB Seres Bussmann power distribution block |
| Catolog Number | PDB371-3 |
| Rated Amperage | 310A |
| Rated Voltage | 600 Vac, 600 Vdc |
| Datasheet | |
| Product Height | 3.67 in |
| Product Length | 5.51 in |
| Product Width | 6.3 in |
| Product Weight | 2.96 lb |
| 3D Model; CAD | step |
| Type | Power distribution block |
| Short Circuit Rating | SCCR: 200 kAIC (#6-2 AWG), 100 kAIC (#14-2 AWG) |
| Special Feature | IP-20 Finger-safe |
| Mounting | panel |
| Material | Tin plated aluminum connectors |
