PDBFS500 Bussmann Power Distribution Block Information
| Product Name | PDBFS Bussmann power distribution block |
| Catolog Number | PDBFS500 |
| Rated Amperage | 620A |
| Rated Voltage | 600 Vac, 600 Vdc |
| Datasheet | |
| Product Height | 4.3 in |
| Product Length | 5.5 in |
| Product Width | 3.9 in |
| Product Weight | 0.95 lb |
| 3D Model; CAD | step |
| Type | Power distribution block |
| Special Feature | IP-20 Finger-safe |
| Mounting | DIN rail, panel |
| Material | Tin plated aluminum connectors |

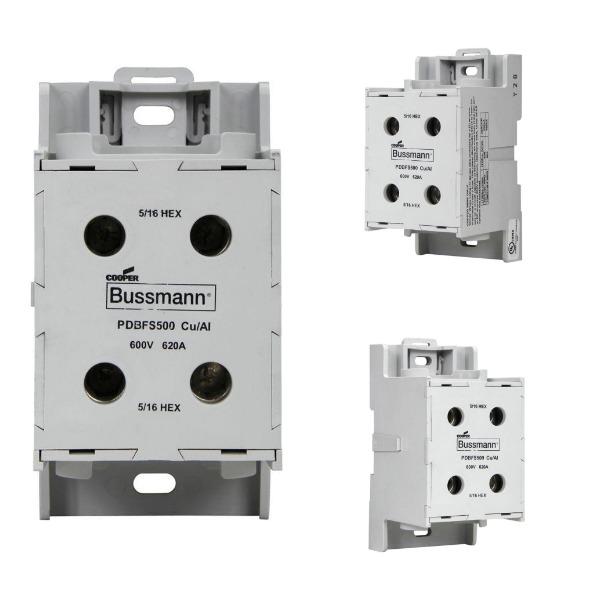

PDBFS500 Bussmann Power Distribution Block Picture

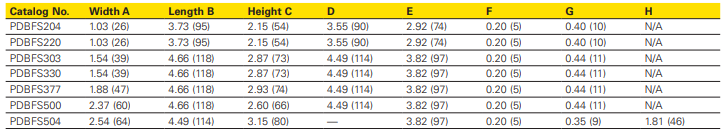

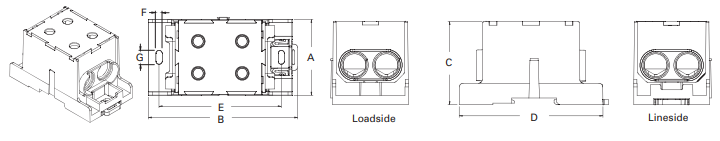

PDBFS500 Dimension
