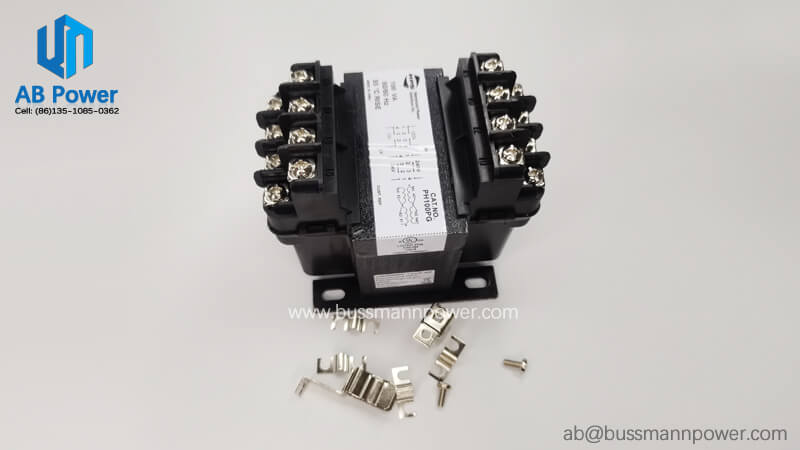

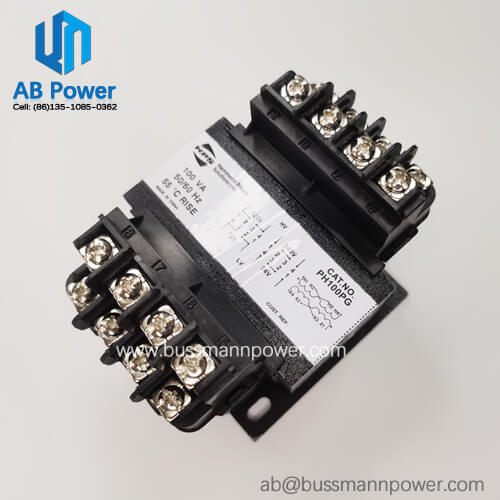

PH100PG
Chassis Mount Transformer, HPS Imperator, Encapsulated
| CATALOG DESCRIPTION: | MACHINE TOOL RATED MOLDED INDUSTRIAL CONTROL TRANSFORMER, 120X240 PV, 12X24 SV, 100VA |
| Category: | Encapsulated Industrial Control Transformers |
| Full Technical Description: | 3.25 Inch W X 4.19 Inch D X 3.63 Inch H Size; 50/60 Hz Frequency Rating; UL 506, UL (Canada and Us), CE Approval; ANSI 506, IEC 61558, NEMA ST-1 Applicable Standard; 0.22 Inch L X 0.44 Inch W Slot Mounting; 100 VA Power Rating; Screw Terminal Type; 120 X 240 V, 115 X 230 V, 110 X 220 V Primary Voltage; 12 X 24 V, 11.5 X 23 V, 11 X 22 V Secondary Voltage; 105 Insulation Class; 55 Deg C Temperature Rise; HPS Imperator [R] Brand; RoHS Compliant; Output Current 8.33/4.17 Ampere; Mounting Feet Material Heavy Steel; Application Process Control, Panel Shop, Machine Automotive, Control Board, HVAC Panel, Power Timer, Solenoid, Controller, Paper Mill and Printing; PH100 Model |
| Manufacturer: | Hammond Mfg. Co. Ltd. |
| Manufacturer Brand: | Hammond Power Solutions, Inc. |
| Product Description: | HAMMOND PH100PG CNTL 100VA 120X240-12X24 |
| Sub-Category: | Encapsulated Control Transformer |
| UNSPSC: | 39121026 |
| UPC 12 Digit: | 803423078140 |
| Unique Product Key: | 5946285 |
