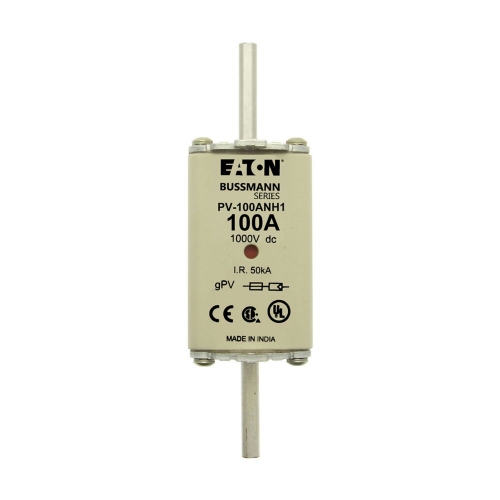

PV-100ANH1 Bussmann 1000VDC Solar NH Fuse
| Product Name | Eaton Bussmann series photovoltaic fuses |
| Catolog Number | PV-100ANH1 |
| Rated Amperage | 100A |
| Rated Voltage | 100VDC |
| Datasheet | |
| Product Length | 135mm |
| Product Height | 63mm |
| Product Width | 40mm |
| Product Weight | 407g |
| Class | Class gPV |
| Construction | Square Body |
| Voltage Type | DC |
| Package Type | Standard |
| Breaking Capacity | 50kA |
| Fuse Size | NH1 |
| Fuse Holder | SD1-D-PV NH Fuse base |
| 3D Model; CAD | Contact |
| Application | Array Protection |
| Certification | IEC 60269 UL Listed CSA Certified |
Dimensions (mm) NH1 Blade without bolt holes
