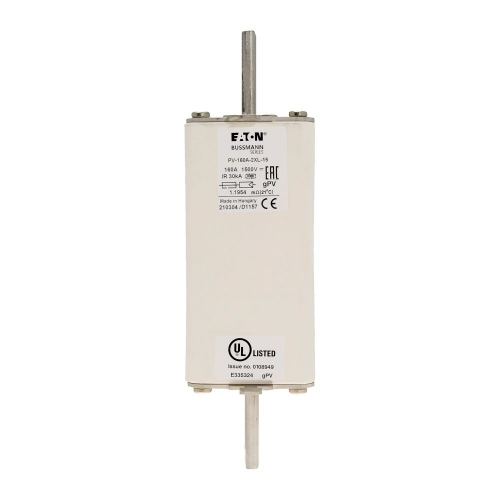

PV-160A-2XL-15 Bussmann 1500VDC Photovoltaic Fuse
| Product Name | Eaton Bussmann series photovoltaic fuses |
| Catolog Number | PV-160A-2XL-15 |
| Rated Amperage | 160A |
| Rated Voltage | 1500VDC |
| Datasheet | |
| Product Length | 205mm |
| Product Height | 64mm |
| Product Width | 60mm |
| Product Weight | 1423g |
| Class | Class gPV |
| Construction | Square Body |
| Voltage Type | DC |
| Package Type | Standard |
| Breaking Capacity | 50kA |
| 3D Model; CAD | Contact |
| Application | Array Protection |
| Certification | IEC 60269 UL Listed CSA Certified |
PV Fuse Dimensions (mm) - size 2 Bladed
