PV-160A-2XL Bussmann 1000VDC Photovoltaic Fuse
| Product Name | Eaton Bussmann series photovoltaic fuses |
| Catolog Number | PV-160A-2XL |
| Rated Amperage | 160A |
| Rated Voltage | 1000VDC |
| Datasheet | |
| Product Length | 217mm |
| Product Height | 82mm |
| Product Width | 84mm |
| Product Weight | 1200g |
| Class | Class gPV |
| Construction | Square Body |
| Voltage Type | DC |
| Package Type | Standard |
| Breaking Capacity | 33kA |
| 3D Model; CAD | Contact |
| Recommend Fuse Holder | SD2XL-S-PV XL Fuse base |
| Application | Array Protection |
| Certification | IEC 60269 UL Listed CSA Certified |

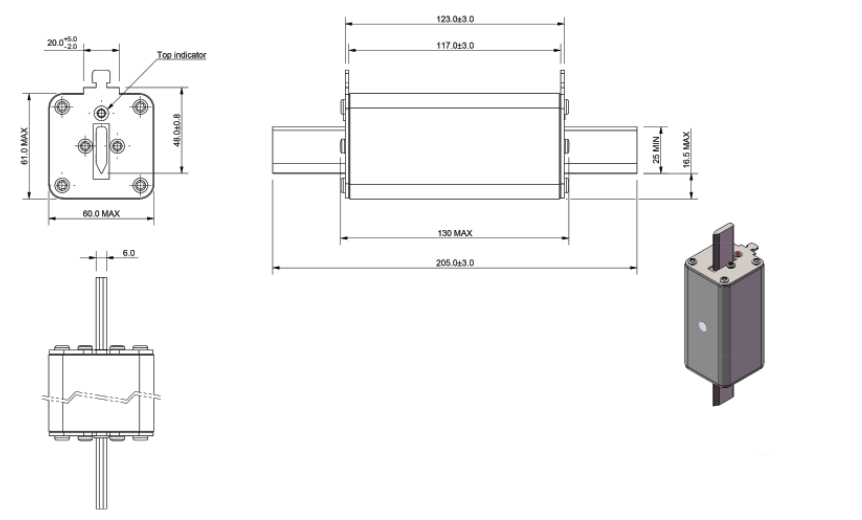

Dimensions (mm)- PV Fuse size 2 Bladed
