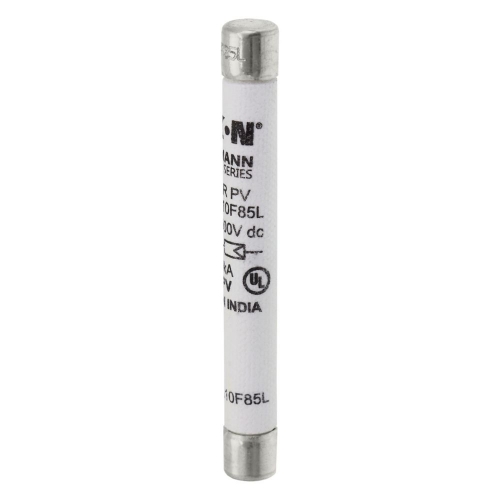

PV-3.5A10F85L Bussmann 1500VDC gPV Fuse
| Product Name | Eaton Bussmann series photovoltaic fuses |
| Catolog Number | PV-3.5A10F85L |
| Rated Amperage | 3.5A |
| Rated Voltage | 1500VDC |
| Datasheet | |
| Product Length | 85mm |
| Product Diameter | 10mm |
| Product Weight | 12g |
| Class | Class gPV |
| Fuse Holder | CHPV15L85 Fuse holder |
| Voltage Type | DC |
| Package Type | Standard |
| Breaking Capacity | 30kA |
| 3D Model; CAD | Contact |
| Application | photovoltaic strings |
| Certification | IEC 60269 UL Listed CSA Certified |
PV-**A10F85L Fuse Dimension -mm
Catalogue Number
| PV-2-25A10F85L |
| PV-2.5A10F85L |
| PV-3A10F85L |
| PV-3.5A10F85L |
| PV-4A10F85L |
| PV-5A10F85L |
| PV-12A10F85L |
| PV-15A10F85L |
| PV-16A10F85L |
| PV-20A10F85L |
| PV-25A10F85L |
| PV-30A10F85L |
