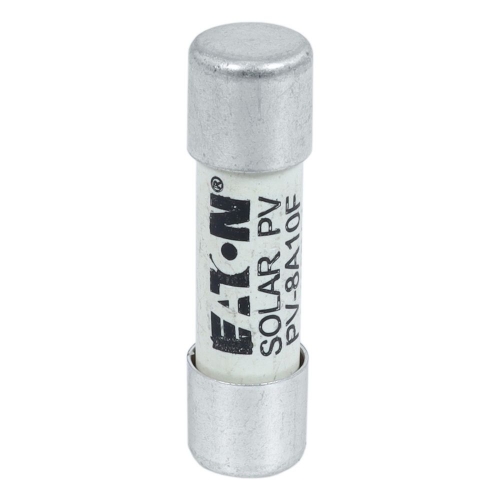

PV-8A10F Bussmann 1000VDC PV Fuse
| Product Name | Eaton Bussmann series photovoltaic fuses |
| Catolog Number | PV-8A10F |
| Rated Amperage | 8A |
| Rated Voltage | 1000VDC |
| Datasheet | |
| Product Length | 38mm |
| Product Diameter | 10mm |
| Product Weight | 8g |
| Class | Class gPV |
| Voltage Type | DC |
| Package Type | Standard |
| Breaking Capacity | 50kA |
| 3D Model; CAD | Contact |
| Recommend Fuse Holder | CHPV |
| Application | String Protection |
| Certification | IEC 60269-6 UL 2579 (File number E335324) CCC (1 to 15A), RoHS compliant |
Dimensions (mm) Cylindrical PV-**A10F
PV-10F Fuse Catalog Number
| Cylindrical | Bolt fixing | In-line with crimp terminal |
| PV-1A10F | PV-1A10-T | PV-1A10F-CT |
| PV-2A10F | PV-2A10-T | PV-2A10F-CT |
| PV-2-5A10F | PV-2-5A10-T | PV-2-5A10F-CT |
| PV-3A10F | PV-3A10-T | PV-3A10F-CT |
| PV-3-5A10F | PV-3-5A10-T | PV-3-5A10F-CT |
| PV-4A10F | PV-4A10-T | PV-4A10F-CT |
| PV-5A10F | PV-5A10-T | PV-5A10F-CT |
| PV-6A10F | PV-6A10-T | PV-6A10F-CT |
| PV-8A10F | PV-8A10-T | PV-8A10F-CT |
| PV-10A10F | PV-10A10-T | PV-10A10F-CT |
| PV-12A10F | PV-12A10-T | PV-12A10F-CT |
| PV-15A10F | PV-15A10-T | PV-15A10F-CT |
| PV-16A10F | PV-16A10-T | PV-16A10F-CT |
| PV-20A10F | PV-20A10-T | PV-20A10F-CT |
