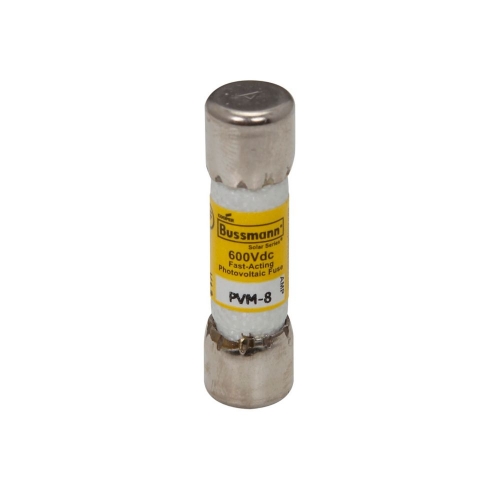

PVM-8 Bussmann 600VDC Photovoltaic Fuse
| Product Name | Eaton Bussmann series photovoltaic fuses |
| Catolog Number | PVM-8 |
| Rated Amperage | 8A |
| Rated Voltage | 600VDC |
| Datasheet | |
| Product Length | 38mm |
| Product Diameter | 10mm |
| Product Weight | 0.008kg |
| Class | Class gPV |
| Construction | Midget Fuse |
| Voltage Type | DC |
| Package Type | Standard |
| Breaking Capacity | 50kA |
| Fuse Size | NH1 |
| Fuse Holder | CHPV, BMM, HEB |
| Connection | Ferrule end x ferrule end |
| 3D Model; CAD | Contact |
| Application | Solar combiner boxes, inverters, solar strings |
| Certification | UL 2579 CSA C22.2. |
PVM Fuse Dimension
PVM Fuse Recommend Fuse Holder
PVM Fuse Catalog No.
| PVM-4 | PVM-7 | PVM-10 | PVM-20 |
| PVM-5 | PVM-8 | PVM-12 | PVM-25 |
| PVM-6 | PVM-9 | PVM-15 | PVM-30 |
