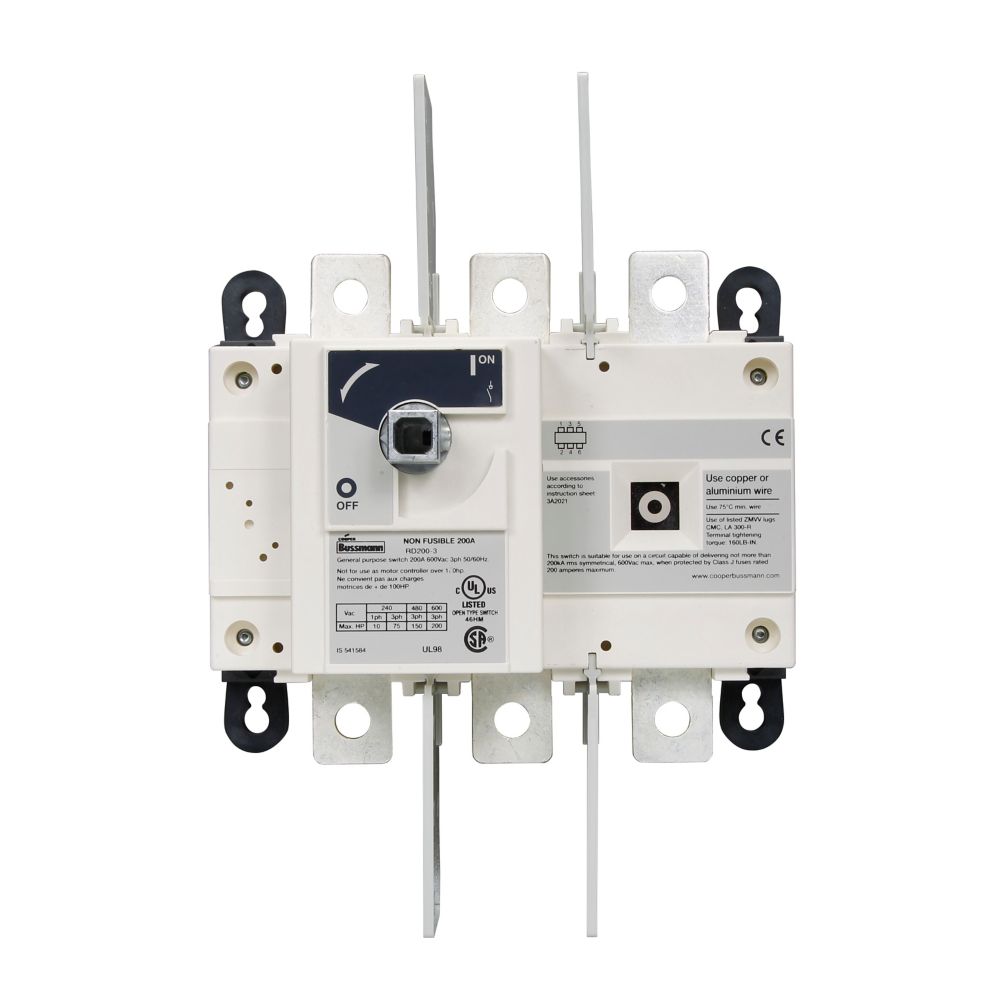

RD200-3 Bussmann Three Pole Disconnet Switch
| Product Name | Eaton Bussmann series RD non-fused rotary disconnect switch |
| Catolog Number | RD200-3 |
| Rated Amperage | 200A |
| Rated Voltage | 600V |
| Datasheet | |
| Product Length | 11 in |
| Product Height | 6.5 in |
| Product Width | 11 in |
| Product Weight | 5.32 lb |
| Number of Poles | 3 pole |
| Package Type | Standard |
| Certification | UL, IEC |

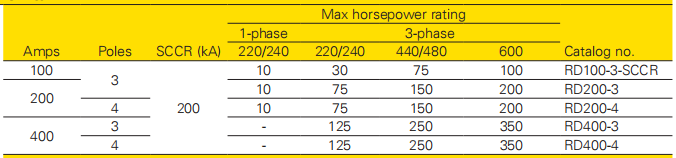

Horsepower Rating

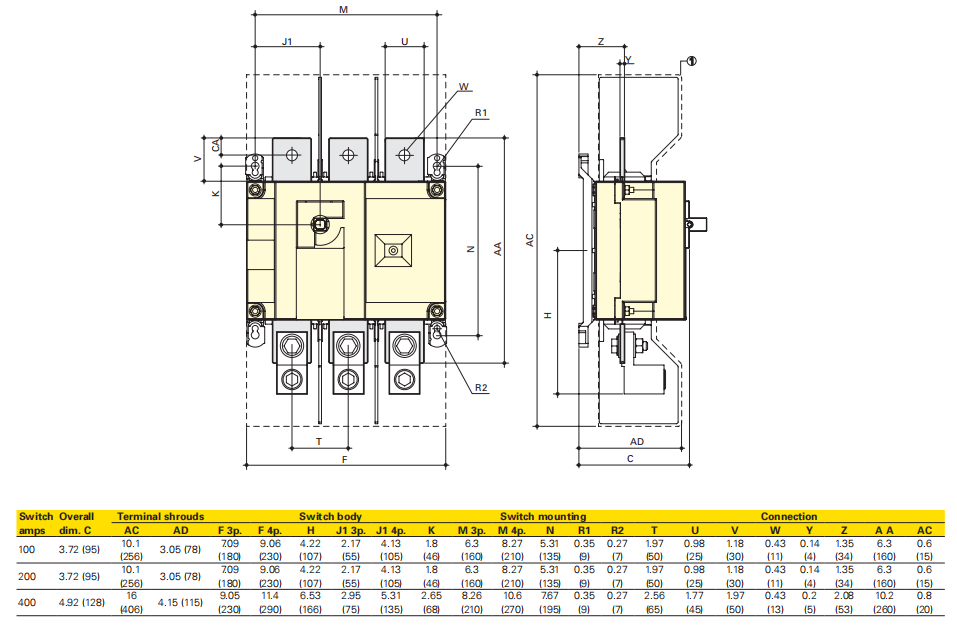

RD Disconnect Switch Dimensions -mm
