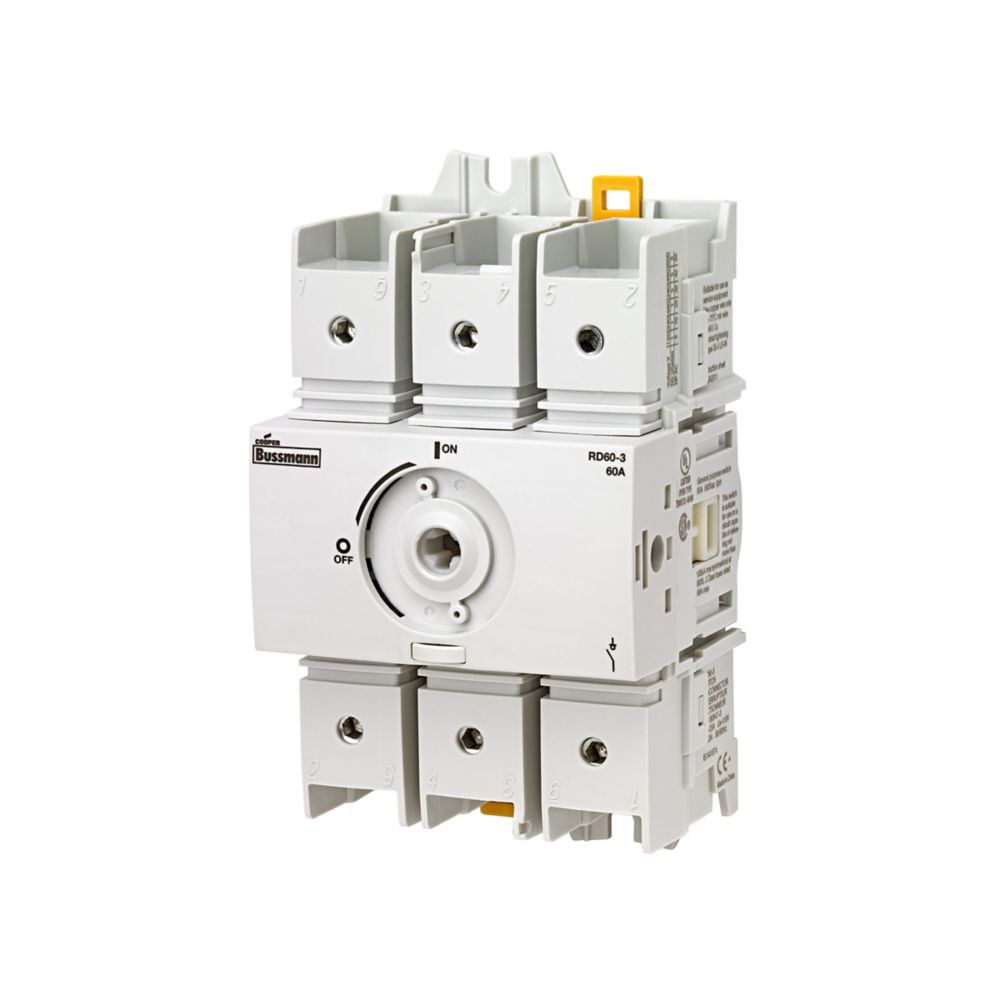

RD60-3 Bussmann Unfused Disconnect Switch
| Product Name | Eaton Bussmann series RD non-fused rotary disconnect switch |
| Catolog Number | RD60-3 |
| Rated Amperage | 60A |
| Rated Voltage | 600V |
| Datasheet | |
| Product Length | 5 in |
| Product Height | 2 in |
| Product Width | 3 in |
| Product Weight | 1.235 lb |
| Number of Poles | 3 pole |
| Package Type | Standard |
| Certification | UL, IEC |

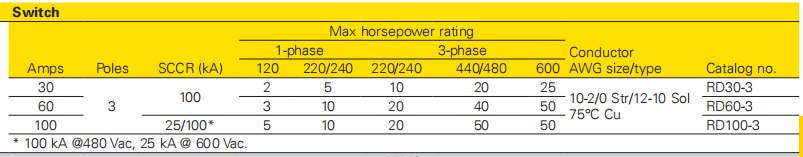

Parameters

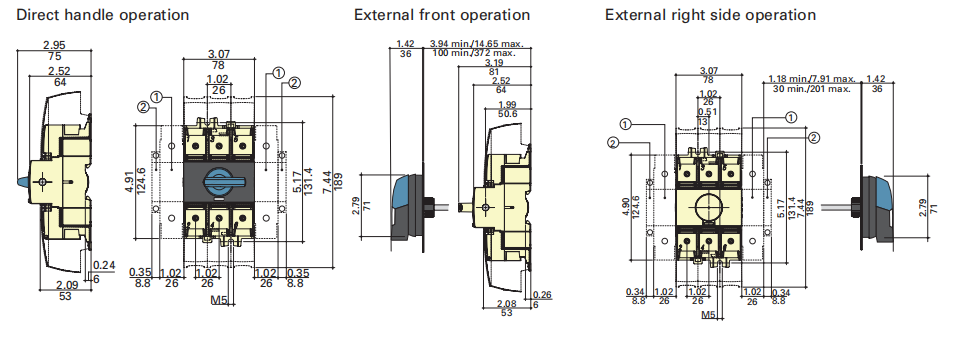

RD Dimensions -mm
