RD63-3-508 Bussmann Disconnect Switch
| Product Name | Eaton Bussmann RD non-fused rotary disconnect switch |
| Catolog Number | RD63-3-508 |
| Rated Amperage | 63A |
| Rated Voltage | 600V |
| Datasheet | |
| Product Length | 2.7in |
| Product Height | 2.95in |
| Product Width | 2.55in |
| Product Weight | 0.59lb |
| Product Type | Disconnect Switch |
| Voltage Type | AC |
| Package Type | Standard |

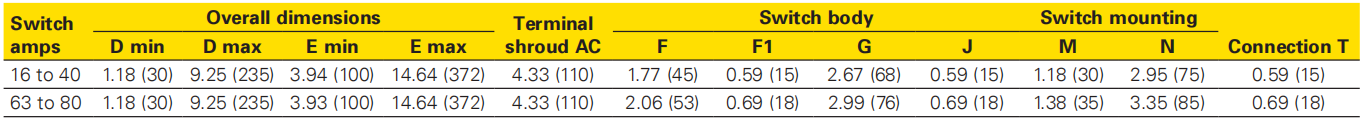

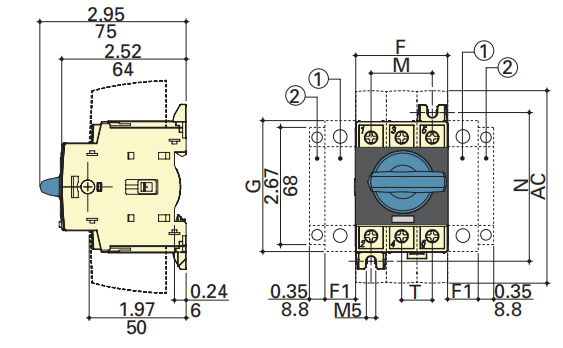

RD Rotary Disconnect Switch Dimensions — in (mm)
What is UL508?
UL 508, the Standard for Safety For Industrial Control Equipment, covers industrial control and related devices rated 1500 volts or less used for starting, stopping, regulating, controlling, or. protecting electric motors. This equipment is for use in accordance.
