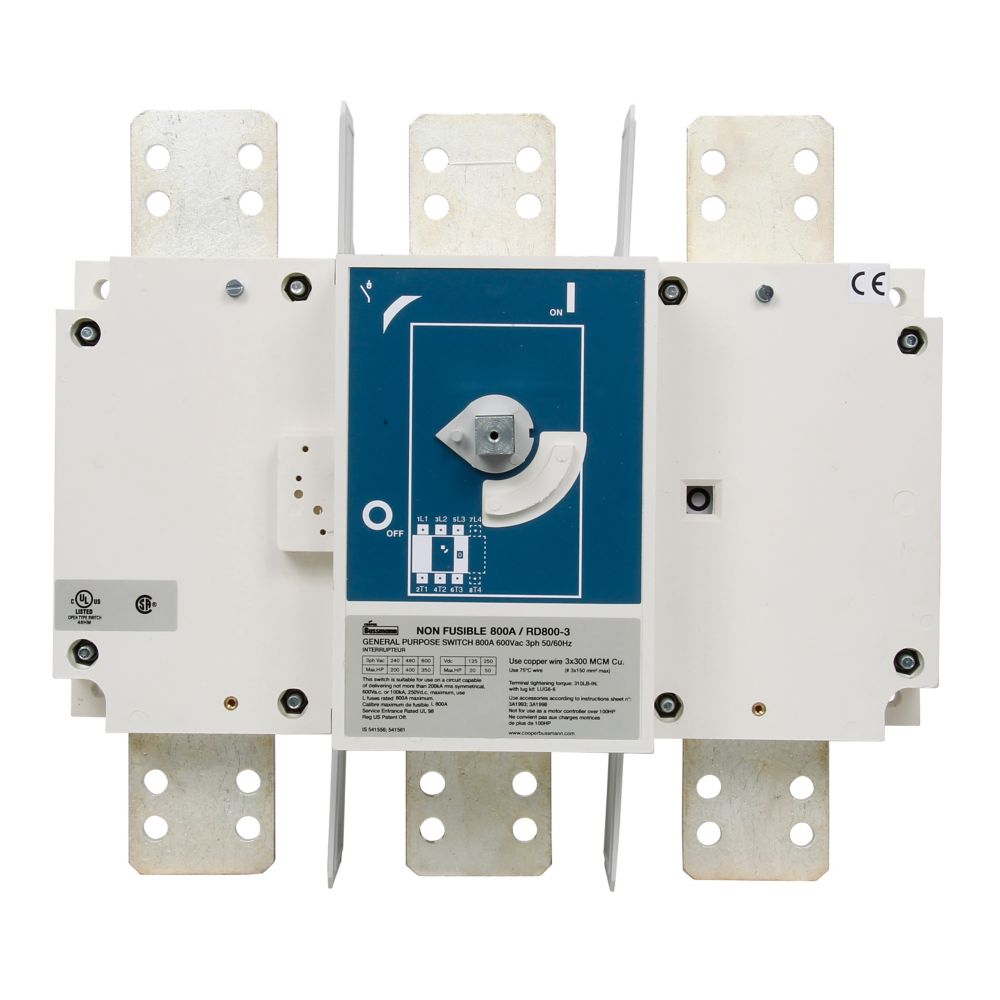

RD800-3 Bussmann Non Fused Disconnect Switch
| Product Name | Eaton Bussmann series RD non-fused rotary disconnect switch |
| Catolog Number | RD800-3 |
| Rated Amperage | 800A |
| Rated Voltage | 600V |
| Datasheet | |
| Product Length | 14.75 in |
| Product Height | 13.8 in |
| Product Width | 7 in |
| Product Weight | 22.4 lb |
| Number of Poles | 3 pole |
| Package Type | Standard |
| Certification | UL, IEC |
RD800-3 Max Horsepower Rating
RD600-1200 Disconnect Switch Dimensions
