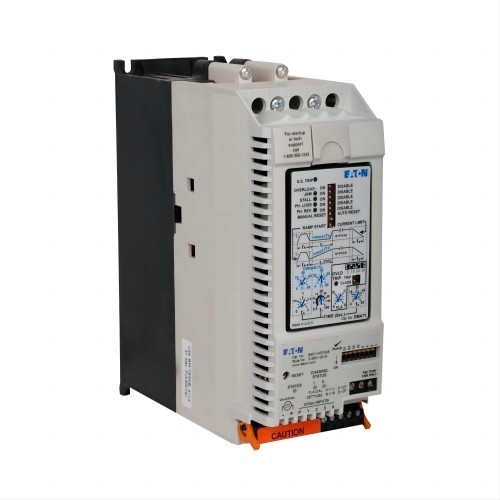

EATON S811+ SOFT STARTER:S801+N37N3S
| GENERAL SPECIFICATIONS | |
| PRODUCT NAME | Eaton S801+ soft starter |
| CATALOG NUMBER | CATALOG NUMBER |
| UPC | 7.86686E+11 |
| PRODUCT LENGTH/DEPTH | 7.37 in |
| PRODUCT HEIGHT | 6.87 in |
| PRODUCT WIDTH | 2.66 in |
| PRODUCT WEIGHT | 5.8 lb |
| COMPLIANCES | CE Marked |
| CATALOG NOTES | All units require a 24 Vdc power supply found on catalog Page V6-T1-85, or equivalent., S811+T_, S811+U_ and S811+V_ units require lug kits, S811+U50_ unit does not have IEC certification. |
| AC CURRENT - MAX | 240 Vac |
| DC CURRENT - MAX | 120 Vdc |
| WIRE SIZE | #22-14 AWG |
| AMPERAGE RATING | 37A |
| NUMBER OF POLES | Three-pole |
| TYPE | Soft starter |
| OPERATING VOLTAGE | 200-600 V |
| USED WITH | Three-phase motors |
