Bussmann DC fuses provide the ultimate protection of the electric vehicle. such as: battery modules and battery packs. Bussmann DC fuses have been tested to provide DC applications best-in-class performance.
Such as: EV30-400.500VDC, 400amp fast acting fuse
- Specification
- Datasheet download
SF75X600BW Bussmann Traction Fuse
| Product Name | Eaton Bussmann Traction Fuse |
| Catolog Number | SF75X600BW |
| Rated Amperage | 1100A |
| Rated Voltage | 900V |
| Datasheet | |
| Product Length | 168mm |
| Product Height | 76mm |
| Product Width | 95mm |
| Product Weight | 1.5kg |
| Class | Class gR |
| Product Type | Traction fuse |
| Voltage Type | DC |
| Package Type | Standard |
| Breaking Capacity | 80 kA at 900 V d.c., L/R 80ms |
SF Traction Fuse
| Operating class | Rated voltage(V d.c.) | Rated current(Amps) | Blade contact | Flush end contact |
| gR | 900 | 160 | SF75X160B | |
| gR | 250 | SF75X250B | ||
| gR | 500 | SF75X500BW | ||
| aR | 600 | SF75X600BW | ||
| aR | 800 | SF75X800BW | SF75X800BB | |
| aR | 1000 | SF100X1000 | SF100X1000HP |

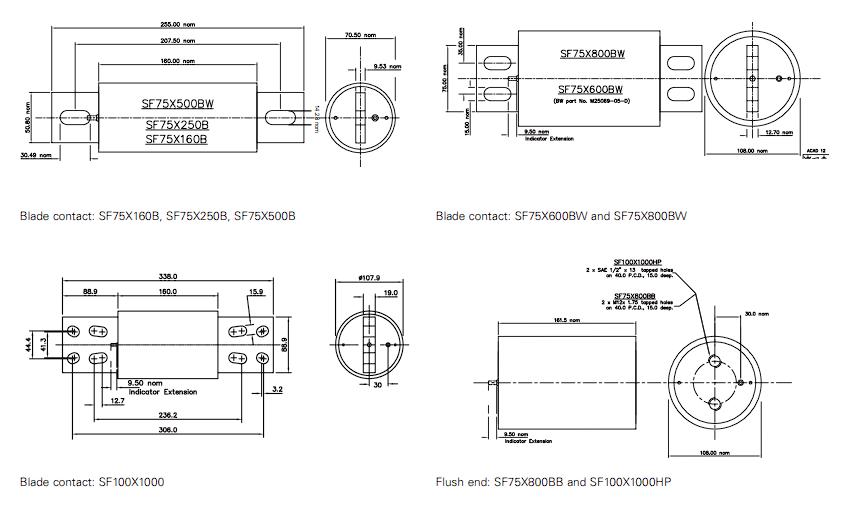

SF Fuse Dimensions
