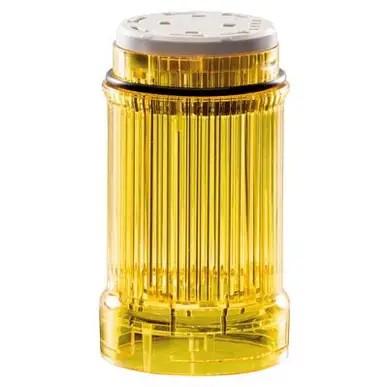

SL4-L24-Y Eaton Light Module

Key Specifications

Light Type: LED

Color: Yellow

Voltage Supply: 24V AC/DC

Illumination Mode: Continuous / Steady

Mounting/Base: 40–43 mm base diameter, compatible with bayonet or screw terminal systems

Termination Style: Screw terminal

Operating Temperature: -30°C to 60°C

Housing Material: Polycarbonate (PC), black with yellow cap

Signal Elements: Single segment (1 stack)

Features and Applications

Provides clear, steady visual signaling for machine status or process alerts

Part of a modular series, allowing for stacking with other SL4 units for multi-color or multi-function towers

Rapid mounting and wiring system enables easy assembly and modification on machines
