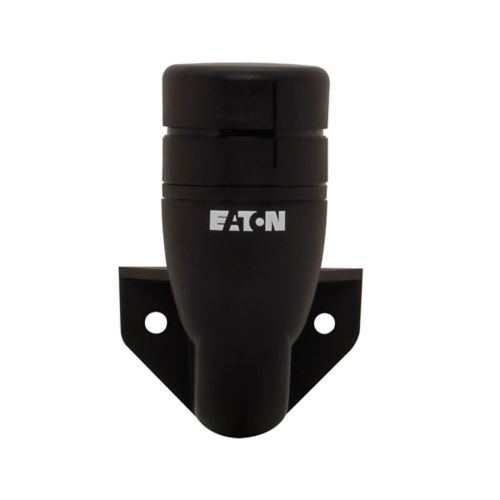

SL4-PIB-FW Eaton Base Module

Key Features

Mounting Type: Vertical mounting on one side with bracket, including cover

Maximum Modules Supported: Up to 5 modules with this standard base (up to 10 with a dual-side base)

Connection Technique: Push-in, spring clamp terminals compatible with solid and flexible conductors (0.2–1.5 mm²; with ferrules 0.25–1.5 mm²)

Compatibility: Designed to be used with SL4-L, SL4-BL, SL4-FL, SL4-AP tower light modules

SmartWire-DT: Not compatible

Technical Specifications

Rated Voltage: 24 V AC/DC ±10%, 110/120 V AC ±10%, 230/240 V AC ±10%

Insulation Voltage (Ui): 250 V; Rated Impulse Withstand Voltage (Uimp): 4000 V AC

Temperature Range: -30°C to +60°C operating

Standards Compliance: IEC/EN 60947-5-1, UL 508, CSA C22.2 No.14, CE marking; UL Type 4, 4X, 13; IP66 protection

Mechanical/Environmental: Shock resistance per IEC 60068-2-27, cyclic damp heat per IEC 60068-2-30

Weight and Dimensions: Approx. 3.2 oz (90–100 g), height 3 in, width 4.5 in, base diameter 43 mm
