SIRCO M-Fusible Disconnect Switches-Socomec

Manufacturer：

Description :SIRCO M, UL 508, 16 to 100 A, suitable for motor disconnect; UL 98, 30 to 100 A, suitable for service entrance,Fusible Disconnect Switch M63,Socomec， ats manual

Stock quantity(PCS) :0

Lead time ( Weeks ) :4-6

Categories：socomec ats manual， fusible disconnect symbol， Fuse, Disconnect, socomec atys, Load Break switchs

Browse：

Chat Now

Inquiry now

Specification
Datasheet download

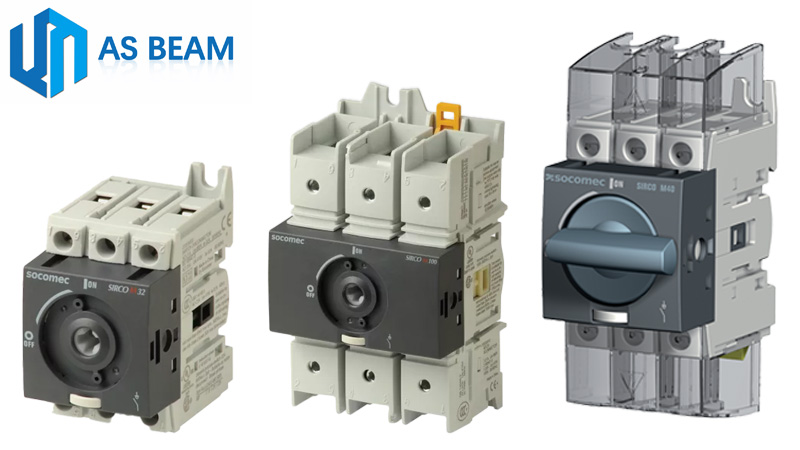

Socomec SIRCO M, 3-pole load break switch available from 16 to 125 A. It can combine with a switched 4th pole,unswitched neutral or PE pole, and pre-break and signaling auxiliary contacts.

With accessories from 16 to 125 A, it's possible to convert a 3-pole load break switch into a 4, 6, or 8-pole load break switch or a 3/4-pole changeover switch. Using its door mounting kit, Socomec SIRCO M load break switches can mount on the panel door.

Socome SIRCO M.jpg

SIRCOM-from 16 to 125A
Rating(A)/ Frame size	No.of poles	Complete switch body toggle operation	Switch body	Direct handle	Door interlocked external front and right side handle	External left side handle	Front externalhandle for changeover switches	Shaft for external front and side handle	4th pole
16A/ M1	3P	22053000	22003000	M00 type Blue 22995012 Red 22995013	S00 type I-0 Black IP55 14711111 Black IP65 14731111 Red/Yellow IP65 14741111	S00 type I-0 Black IP65 147A5111 Red/Yellow IP65 147B5111	S00 type I-0-II Black IP65 14731113 I-I+II-II Black IP65 14731114	S0,S00 type 150mm 14070515 200mm 14070520 320mm 14070532	22001000




20A/ M1	3P	22053001	22003001						22001001

25A/ M1	3P	22053002	22003002						22001002

32A/ M1	3P	22053003	22003003						22001003

40A/ M1	3P	22053004	22003004						22001004

63A/ M2	3P	22053006	22003006						22001006

80A/ M2	3P	22053008	22003008						22001008

100A/ M3	3P		22003010	M01 type Blue 22995032	S0 type I-0 Black IP55 14811111 Black IP65 14831111 Red/Yellow IP65 14841111	S0 type I-0 Black IP65 148A5111 Red/Yellow IP65 148B5111	S00 type I-0-II Black IP65 14730113 I-I+II-II Black IP65 14730114		22001010







125A/ M3	3P		22003011						22001011

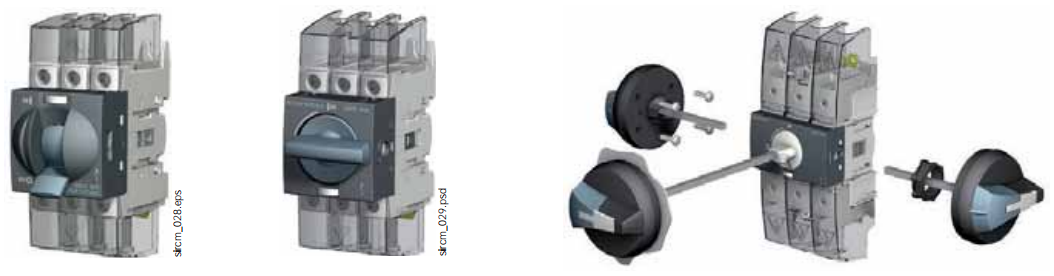

Socomec SIRCO M can be operated in 3 different ways:

1.Complete switch body for toggle operation, 2.Direct front operation with handle, 3.External operation front, left side or right side

Socomec SIRCO M.png
