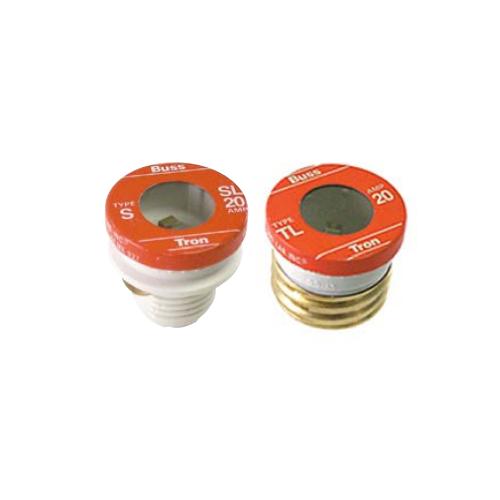

Bussmann SL rejection base and TL Edison base plug fuses
Time-delay, loaded link Edison (TL) and rejection base (SL) plugfuses.
Rating
• Volts 125 Vac • Amps 15-30 A • IR 10 kA RMS Sym.
Agency information
• UL Listed, Std 248-11, Guide JEFV, File E12112, CE
Features
• Time-delay loaded link TL Edison base plug fuses pass motoroverload starting currents without opening and allow closer sizingto motor load for added protection
• Time-delay loaded link SL fuses provide a rejection feature (whenused alone or with Fustat adapters to retrofit Edison base holders)to help prevent overfusing
Typical applications
• Small motor and inductive load circuits with high in-rush currentlevels
• TL for box cover units to provide small motor overload protection
• SL for applications benefiting from fuse rejection
Catalog Number
| Rejection base SL | |||
| SL-15 | SL-20 | SL-25 | SL-30 |
| Edison base TL | |||
| TL-15 | TL-20 | TL-25 | TL-30 |
